    240W/m2 SMD2121 1200CD/sqm Flexible Soft LED Module

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P3
    Certification : CE ,FCC, ROSH CCC
    Price : USD530--USD900/㎡
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    240W/m2 SMD2121 1200CD/sqm Flexible Soft LED Module

    Dj Bar Video Wall Font Service Flexible Soft LED Module Indoor P3 Curved Led Screen


    Features:


    1. Soft LED module,supports any radian,curved/cylinder /flat LED screens are available.


    2. Front service /maintenance LED display ,thickness can be super slim 10cm.No need to leave too much space between screen and the wall. No need to take off screws to maintenance LED module,then replace receiving card or power supply.


    3. Flexible LED screen can be designed colorfull shaped.


    4. The flexible LED display can be mounted on any surface, suitable for artistic modeling

    like Column cabinets - curved cabinets - wave cabinets

    5. Suitable for Surfaces display of stage background, exhibition hall, indoor conference room, etc.

    6. Adopts strong magnetic installation, and directly adsorbs, which is convenient for installation and convenient for maintenance. And safety and stability are high

    7. The PCB is made of flexible soft board, and the mask and the bottom case are made of rubber

    8. The connection between the modules uses a high-end connector - HDMI connector

    9. More reliable and stable with distributed scanning and modular design

    10. High grayscale high refresh rate design:Gray level can be 10-16bit, refresh rate can be 960-3840Hz


    11. Wide application, can be used in so many fields and occasions, specially in all kinds of irregular buildings.


    Technical Parameter for P3 INDOOR LED DISPLAY

    Module Specifications
    1Pixel Pitch3mm
    2Led TypeSMD2121
    3Pixel configuration1R1G1B
    4Module Size192x192mm
    5Module Resolution64x64pixels
    6LED ChipEpistar
    7LED brandHongsheng/Forest/ Kinglight/Nationstar/
    Cabinet Specification
    1Cabinet Size576x576mm
    2Cabinet Resolution192x192 pixels
    3Module Qty.3x3pcs
    4Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet Materialsdie casting aluminum
    7Power flight socket

    1set


    8Signal flight socket1 set
    Screen Parameters
    1Pixel density111111dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥1200CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Mode1/32 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥3m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 800W/㎡ Average:240W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP40/IP30
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~70℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessBack service/Front service
    21Video processorNovastar/Colorlight/LINSN/VDWALL/RGBLINK/KYSTAR
    22Control modecomputer /USB/WIFI/4G

    HS code: 8528591090


    Regular plywood case package(flight case also available,need extra cost)

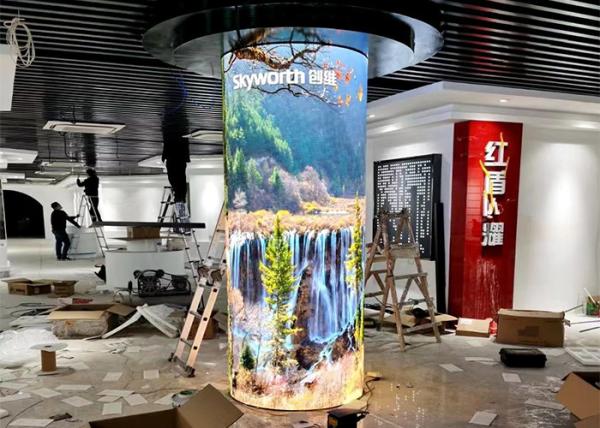

    Common indoor product project case:

    About US

    Shenzhen Xing Guang Cai Technology Co, Ltd. was founded in 2013. We are a national high-tech enterprise which focuses on R&D, manufacturing, retail and serving of LED display. We have our own operation center and manufacturing base in Shenzhen.


    Our products are widely used in indoor and outdoor commercial meida, sports venues, stage performances, special-shape creativity, etc. We also provide LED display integrated solutions. With the development of technology and manufacture workmanship, we have made many classical cases in the international market.
