IP65 P3 1R1G1B Outdoor Digital Advertising Screens

    Buy cheap IP65 P3 1R1G1B Outdoor Digital Advertising Screens from wholesalers

    Buy cheap IP65 P3 1R1G1B Outdoor Digital Advertising Screens from wholesalers
    • Buy cheap IP65 P3 1R1G1B Outdoor Digital Advertising Screens from wholesalers
    • Buy cheap IP65 P3 1R1G1B Outdoor Digital Advertising Screens from wholesalers
    • Buy cheap IP65 P3 1R1G1B Outdoor Digital Advertising Screens from wholesalers

    IP65 P3 1R1G1B Outdoor Digital Advertising Screens

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P3
    Certification : CE ,FCC, ROSH CCC
    Price : USD900--USD1300 /pcs
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    IP65 P3 1R1G1B Outdoor Digital Advertising Screens

    P3 large advertising LED display outdoor LED panel with RGBLINK LED video processor


    How to select led type?

    In usually,

    For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25

    For outdoor stage will be select P3.91 P4.81 P5 P4.81 P6.25 P6 P8 P10

    For fixed installed led screen, can select P2 P2.5 P2.976 P3 P4 P5 P6 P7.62 P10

    For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10 P12

    if directly to sun,can select outdoor SMD P8, DIP P10

    For big size led screen can select DIP P10 P12 P16 or P20

    Also we have researched outdoor high resolution DIP 3in1: P4 P5 P6 P8 P10,there are good for high resolution led screen


    Technical Parameter for P3 OUTDOOR DOUBLE SIDES LED DISPLAY

    Module Specifications
    1Pixel Pitch3mm
    2Led TypeSMD1921
    3Pixel configuration1R1G1B
    4Module Size192x192mm
    5Module Resolution64x64pixels
    6LED ChipEpistar
    7LED brandHongsheng/Forest/ Kinglight/Nationstar/
    Cabinet Specification
    1Cabinet Size960x960mm OR customized
    2Cabinet Resolution320x320 pixels/side
    3Module Qty.5x5pcs/side
    4Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet Materialsiron
    7Power flight socket

    1set


    Screen Parameters
    1Pixel density111111dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥6500 CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Mode1/16 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥3m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 1000W/㎡ Average:300W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP65/IP54
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~90℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessBack service/Front service
    21Video processorNovastar/ Colorlight /Linsn /VDWALL /RGBLINK /SYSTAR
    22Control modecomputer /USB/WIFI/4G

    HS code: 8528591090


    Regular plywood case package.

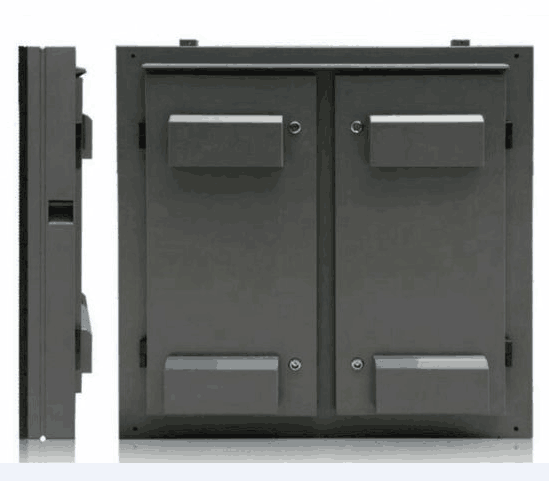

    LED cabinet viewing:

    Computer control mode connection diagram:

    Remote control mode(supports computer,smartphone/iPad/USB to update content.)


    Q1,How to arrange payment?

    Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable


    Q2,What is our warranty?

    Our warranty 2-3 years, basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well


    Q3,How to be our distributor?

    To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time


    Q4, How to maintence led screen?

    In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules


    Let us come together to create a lasting relationship,and let us help you in this business well

    If you want more information,welcome to contact us,thanks
