576X576mm 64x64pixels SMD2121 Led Video Wall Curtain

    Buy cheap 576X576mm 64x64pixels SMD2121 Led Video Wall Curtain from wholesalers

    Buy cheap 576X576mm 64x64pixels SMD2121 Led Video Wall Curtain from wholesalers
    • Buy cheap 576X576mm 64x64pixels SMD2121 Led Video Wall Curtain from wholesalers
    • Buy cheap 576X576mm 64x64pixels SMD2121 Led Video Wall Curtain from wholesalers
    • Buy cheap 576X576mm 64x64pixels SMD2121 Led Video Wall Curtain from wholesalers
    • Buy cheap 576X576mm 64x64pixels SMD2121 Led Video Wall Curtain from wholesalers

    576X576mm 64x64pixels SMD2121 Led Video Wall Curtain

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P3
    Certification : CE ,FCC, ROSH CCC
    Price : USD480--USD800 /㎡
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    576X576mm 64x64pixels SMD2121 Led Video Wall Curtain

    Full color 1R1G1B SMD LED video wall indoor P3 576X576mm LED display screen for gym


    FAQ:


    1: What is the warranty of your led display?
    A:We offer 3 years warranty.and more than 100000 hours screen life span.


    2: what is your payment term?How long it takes to delivery?
    A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery.The lead time is usually 5-15 days.


    3: How can you ensure the led display product quality?
    A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use.


    4: What is your pre-sale and post-sale service?
    A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.


    Advantage:


    1. P3 mm SMD full color is also improved a high brush products,Products are not only cheaper prices more affordable effect is also significantly more powerful.


    2. Led screen indoor cabinet have fast locks make the installation much easier. We also deliver the
    connecting plates to tighten the cabinets and make it better in flatness.
    3. Fast magnet design, cabinets can be easily assemblied in 7 seconds. Dual-maintenance, no need fan, noiseless, low power
    comsumption. Vertical / Horizontal viewing angle 140 degree.Calibration for high quality picture.

    Technical Parameter for P3 INDOOR LED DISPLAY

    Module Specifications
    1Pixel Pitch3mm
    2Led TypeSMD2121
    3Pixel configuration1R1G1B
    4Module Size192x192mm
    5Module Resolution64x64pixels
    6LED ChipEpistar
    7LED brandHongsheng/Forest/ Kinglight/Nationstar/
    Cabinet Specification
    1Cabinet Size960x960mm
    2Cabinet Resolution320x320 pixels
    3Module Qty.5x5pcs
    4Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet Materialsiron cabinet
    7Power flight socket1set
    Screen Parameters
    1Pixel density111111dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥1200 CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Mode1/32 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥3m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 800W/㎡ Average:240W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP40/IP30
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~70℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessBack service/Front service
    21video processorNovastar/ Colorlight/ Linsn/ VDWALL/ RGBLINK /KYSTAR
    22Control modecomputer /USB/WIFI/4G

    HS code: 8528591090

    Regular plywood package:(Flight case also available,but need to pay extra cost.)

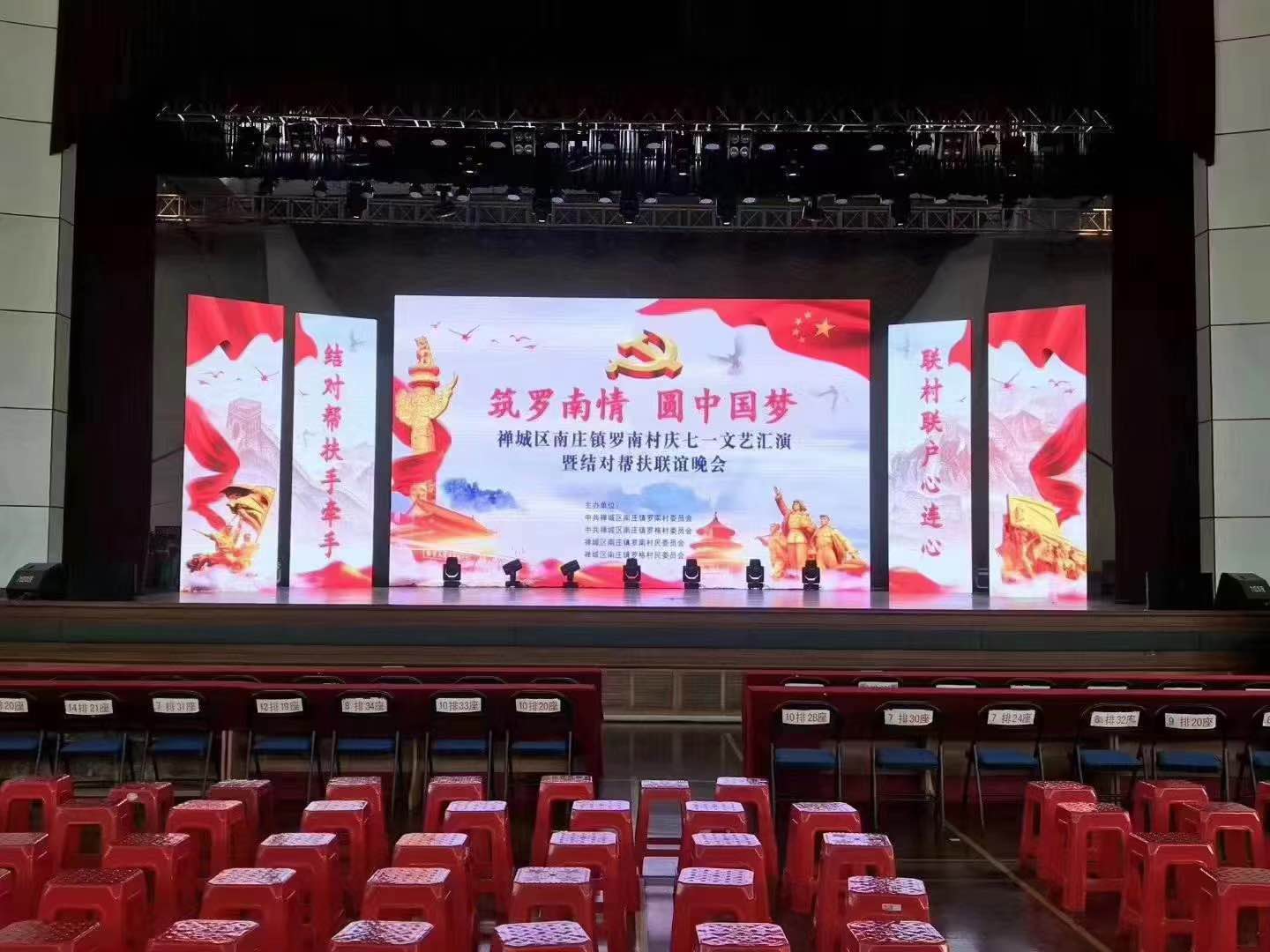

    Common indoor stage LED display project case:

    Common simple iron cabinet for screen:(cabinet comes with back doors is available,need an extra price.)

    After-sale service


    We promise we provide 2-3 years warranty for free maintain for our products and full life tracking service.


    1. During the warranty period, we will repair the equipment free of charge unconditionally if the problem is caused by product quality or production and installation problem.


    2. When the warranty expires. we continue to provide maintenance service for whole life of the equipment with relative service/material cost paid.
