    Outdoor Big Advertising Ultra Thin P4.81 LED Screen Module

    Ask Lasest Price
    Brand Name : XGCLED
    Model Number : P4.81 outdoor led module
    Price : USD$85/pcs
    Payment Terms : T/T, Western Union, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 5000 square meter per month
    Delivery Time : 7-20days
    • Product Details
    • Company Profile

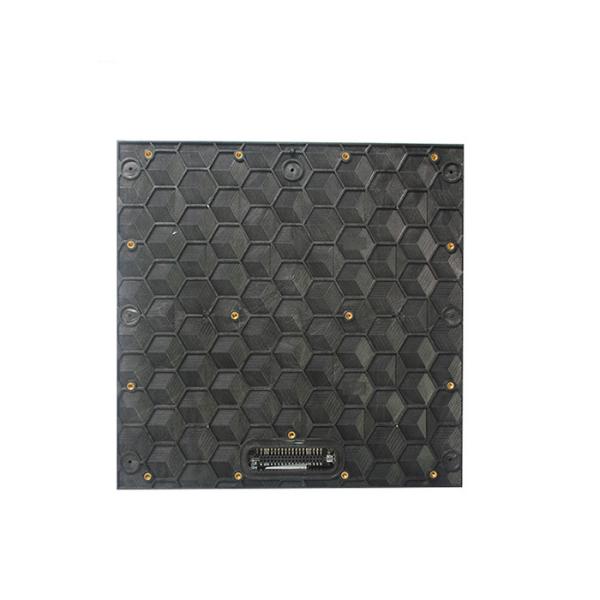

    Outdoor Big Advertising Ultra Thin P4.81 LED Screen Module

    Outdoor big advertising LED display panel P4.81 LED module ultra thin design


    Configuration


    Our LED lamp are by Sanan , Kinglight , Silan , Epistar , Nation star , Cree etc .


    Driving IC optional brand ICN2038S or MBI5124


    Outdoor P4.81 SMD2727 LED module parameter
    Pixel InformationPixel Pitch4.81mm
    Pixel Density43264Pixels/m2
    Pixel Configuration1R1G1B
    LEDs BrandRed: Silan/ Epistar / Cree
    Green:Silan/ Epistar / Cree
    Blue: Silan/ Epistar / Cree
    LEDs WavelengthRed: 615 nm - 625 nm
    Green: 520 nm - 535 nm
    Blue: 465 nm - 475 nm
    LED ModuleModule Size250mm (Width) × 250 mm(Height) = 0.0625/m2
    Module Resolution52 pixels(Width) × 52 pixels(Height) = 2704pixels
    LED CabinetCabinet Size500 mm(Width) × 500mm(Height) = 0.25/m²
    Cabinet Resolution104Pixels(Width) × 104Pixels(Height) = 10816Pixels
    Total QYT Module Per Cabinet2Modules(Width) × 2Modules(Height) = 4Modules
    Cabinet Weight8kgs
    Cabinet MaterialDie casting Aluminum
    PowerInput Voltage110-240V AC, 50/60Hz
    Max Power Consumption1200 Watt/ m²
    Avg. Power Consumption600 Watt/ m²
    ViewingBrightness5000cd/m2
    Brightness UniformityLuminance Discrepancy < 4%
    Colors256X256X256
    Grey Scale(Level)14bits
    Slot Between Neighboring Modules< 1 mm
    Best Viewing AngleHorizontal:120°/ Vertical:60°
    Viewing Distance15-200 Meters
    Ambint ConditionsTemperature RangeStorage:-40 °c to +85°c.; Working:-20°c to +60°c
    Operating Humidity10%-90%RH
    Ingression Protection GradeFront Side: IP31 (Resist spraying of water gun directly);
    Back Side: IP30 (Resist Rain)
    ProcessingScanning ModeReal Pixel , 1/13 Scan
    Refresh Frequency1920HZ
    Signal InputDVI, Composite Video for Live Video
    Supported NetworkingThrough LAN/WAN, RS 232/RS485
    ControllerLinsn, Xixun, DB-star, Colorlight ,Nova-star,etc.
    OtherLife Span80,000 - 100,000 Hours


    Our service


    1) The price depends on the quality . we can offer you the best competitive price with the same even better quality .


    2). Good after sale service : We can response in time if customers have quetions about the installation , usage and maintenance ect.


    3) Your inquiry will be replied by well -trianed and experience staffs in 24hours .


    4) Top quality and reasonable price and responsible after service equal to sucessful and win


    5) Help you design OEM& ODM or any your customeried LED screen and put into production


    6) Distributorship are offered for your unique design and some our current models


    7) Your sales area , ideas of design and all your private information will be well protected .
