SMD2525 P5 Outdoor Led Display

    Buy cheap SMD2525 P5 Outdoor Led Display from wholesalers

    Buy cheap SMD2525 P5 Outdoor Led Display from wholesalers
    • Buy cheap SMD2525 P5 Outdoor Led Display from wholesalers
    • Buy cheap SMD2525 P5 Outdoor Led Display from wholesalers

    SMD2525 P5 Outdoor Led Display

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P5
    Certification : CE ,FCC, ROSH CCC
    Price : USD3800--USD4500 /pcs
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    SMD2525 P5 Outdoor Led Display

    Double Sides TV LED Player SMD2525 6500CD P5 Outdoor Street Standing Poster LED Display


    1. High Stability: Use high quality components and parts and sophisticated processing technique. Products with stable quality , high reliability and long life span.

    2. Rich Content: It can show text, chart, graphic, cartoon ,video and so on.

    3. High Refresh Rate: Adopt MBI5124 drive IC (Standard Configuration). The refresh rate can be as high as 1920Hz, which can eliminate ghost effect effectively. For rental led display, we prefer to adopt the MBI5252/ MBI5153 driver IC, the refresh rate can achieve 3840Hz. The graphics are stable with no wave or black screen. Video pictures are fine and smooth with clear edges. It has good dynamic expressiveness which can show the graphic information exactly/vividly and brings you perfect visual enjoyment.

    4. High Resolution: Adopt high pixel density display unit with micro pitch, which can joint the boards together in any direction, any size and any shape to easily produce FHD, 4k big screen.

    5. Superior Consistency Coupled with Low Brightness and High Gray: Adopt high quality black LED lamp with black cover. The contrast can be as high as 3000:1. Pictures are fine and clear with vivid color.

    6. Super-wide view angle: 140°view angle and consistent display effect at multi direction , no mosaic phenomenon.

    7. Advanced control system: Prefer adopting advanced and stable Nova Star control system, with the best led display control system, the most advanced pixel-level led display calibration system and the most professional software for specialized applications.

    8. LED Single-lamp maintenance with low cost.

    9. Environmental-friendly and energy-saving.


    Technical Parameter for P5 OUTDOOR DOUBLE SIDES LED DISPLAY

    Module Specifications
    1Pixel Pitch5mm

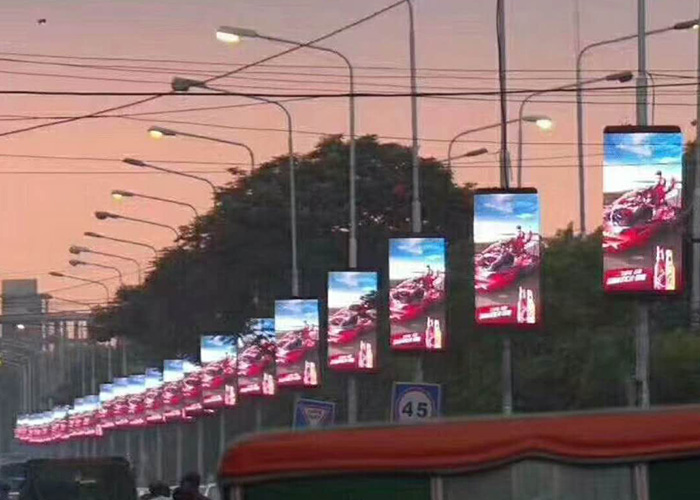

    Outdoor LED screen project cases:




    2Led TypeSMD2525
    3Pixel configuration1R1G1B
    4Module Size320x160mm
    5Module Resolution64x32pixels
    6LED ChipEpistar
    7LED brandHongsheng/Forest/ Kinglight/Nationstar/
    Cabinet Specification
    1Cabinet display Size1280x1920mm
    2Cabinet size1340*2450mm
    3Cabinet Resolution256x384 pixels/side
    4Module Qty.4x12pcs/side
    5Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet Materialsiron cabinet
    Screen Parameters
    1Pixel density40000dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥6500 CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Mode1/8 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥5m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 1000W/㎡ Average:300W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP65/IP54
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~90℃RH
    17Control SyetemNovastar
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessBack service/Front service
    21Light sensorNovastar
    22Control modecomputer /USB/WIFI/4G

    HS code: 8528591090


    Regular plywood package.

    Product inside viewing:(Controller is installed inside cabinet,simple installation mode)

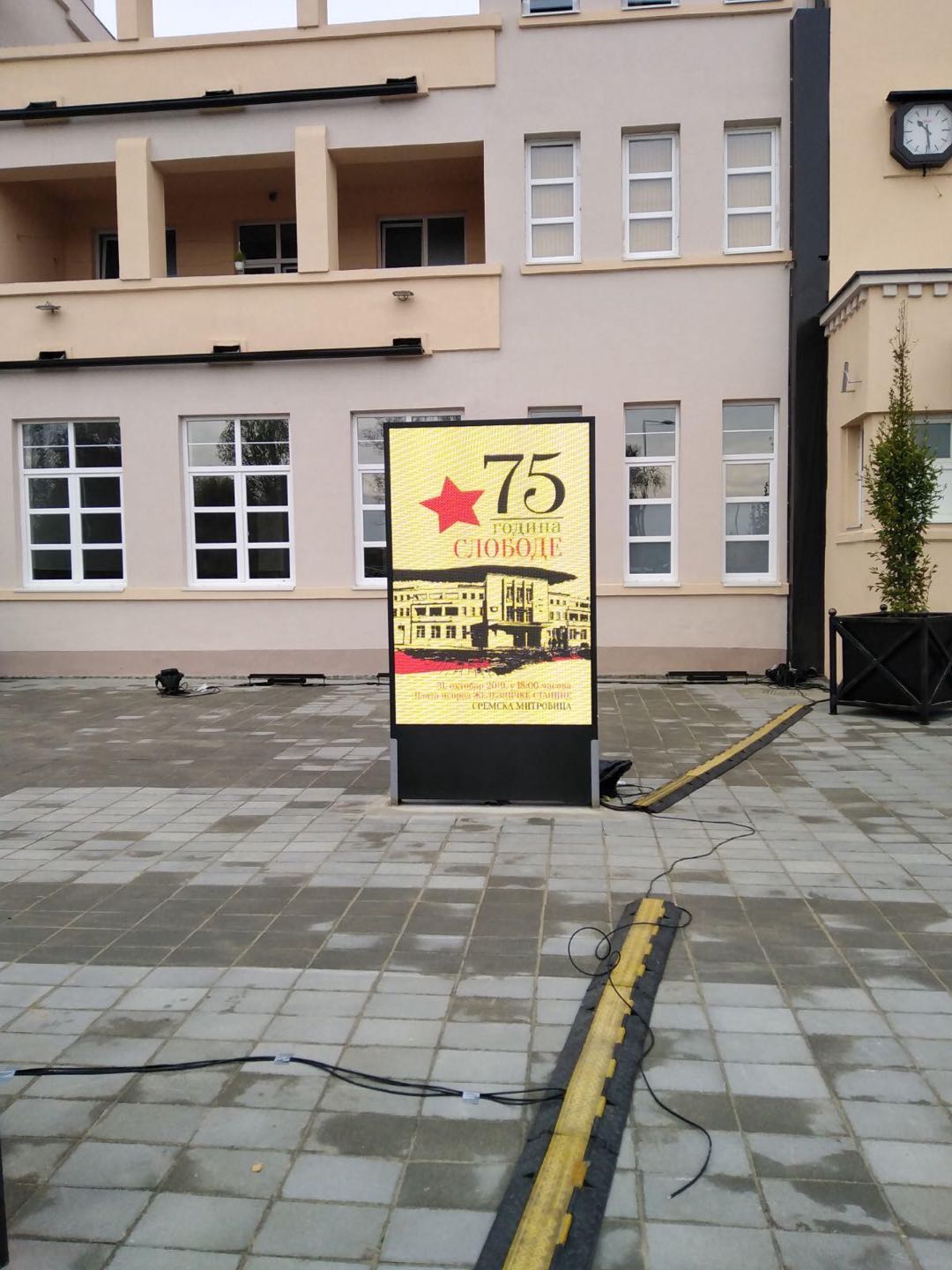

    Case in Serbia


    Remote control mode(computer,smartphone,iPad)


    Q1,How to arrange payment?

    Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable


    Q2,What is our warranty?

    Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well


    Q3,How to be our distributor?

    To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time


    Q4, How to maintence led screen?

    In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules


    Q5,How to select led type?

    In usually,

    For indoor stage will be select indoor die casting P2.5 P2.976 P3 P3.91 P4.81 P4 P5 P6 P7.62 P10

    For outdoor stage will be select P4.81 P6.25 P6 P8 P10

    For fixed installed led screen, can select P2 P2.5 P2.976 P3 P3.91 P4.81 P4 P5 P6 P7.62 P10

    For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10 P12

    if directly to sun,can select outdoor SMD P8, DIP P10

    For big size led screen can select DIP P10 P12 P16 or P20

    Also we have researched outdoor high resolution DIP 3in1: P4 P5 P6 P8 P10,there are good for high resolution led screen

    Let us come together to create a lasting relationship,and let us help you in this business well

    If you want more information,welcome to contact us,thanks
