    P4 RGB SMD2525 Outdoor Football Stadium Sport Led Display

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P4
    Certification : CE ,FCC, ROSH CCC
    Price : USD650--USD900 /㎡
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    P4 RGB SMD2525 Outdoor Football Stadium Sport Led Display

    Outdoor P4 RGB SMD2525 sport football stadium LED video wall display screen


    Advantages:


    1. High refresh rate: no scanning line when photographed


    2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect


    3. High resolution: The most apparent features of the new generation of LED display


    4. Good color uniformity: With high quality brand of LED Lamp Nationstar/Kinglight,better MBI ICN IC.


    5. High Quality: CE, RoHs, FCC, CCC, IP65 passed + 96 Hours serious testing time


    6. Long life span: over 11years, warranty from 2 to 3 years.


    7. You need = We design : Provide Personal- Customized led offer .



    Technical Parameter for P4 OUTDOOR SPORT LED DISPLAY


    Module Specifications
    1Pixel Pitch4mm

    Standard outdoor waterproof sealed iron LED cabinet


    2Led TypeSMD2525
    3Pixel configuration1R1G1B
    4Module Size256x128mm
    5Module Resolution64x32pixels
    6LED ChipEpistar
    7LED brandHongsheng/Forest/ Kinglight/Nationstar/
    Cabinet Specification
    1Cabinet Size1024x1024mm
    2Cabinet Resolution256x256 pixels
    3Module Qty.4x8pcs
    4Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet Materialsiron cabinet
    7Power flight socket1set
    Screen Parameters
    1Pixel density62500dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥5500 CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Mode1/8 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥6m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 1000W/㎡ Average:300W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP65/IP54
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~90℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessBack service/Front service
    21Control modecomputer /USB/WIFI/4G

    HS code: 8528591090

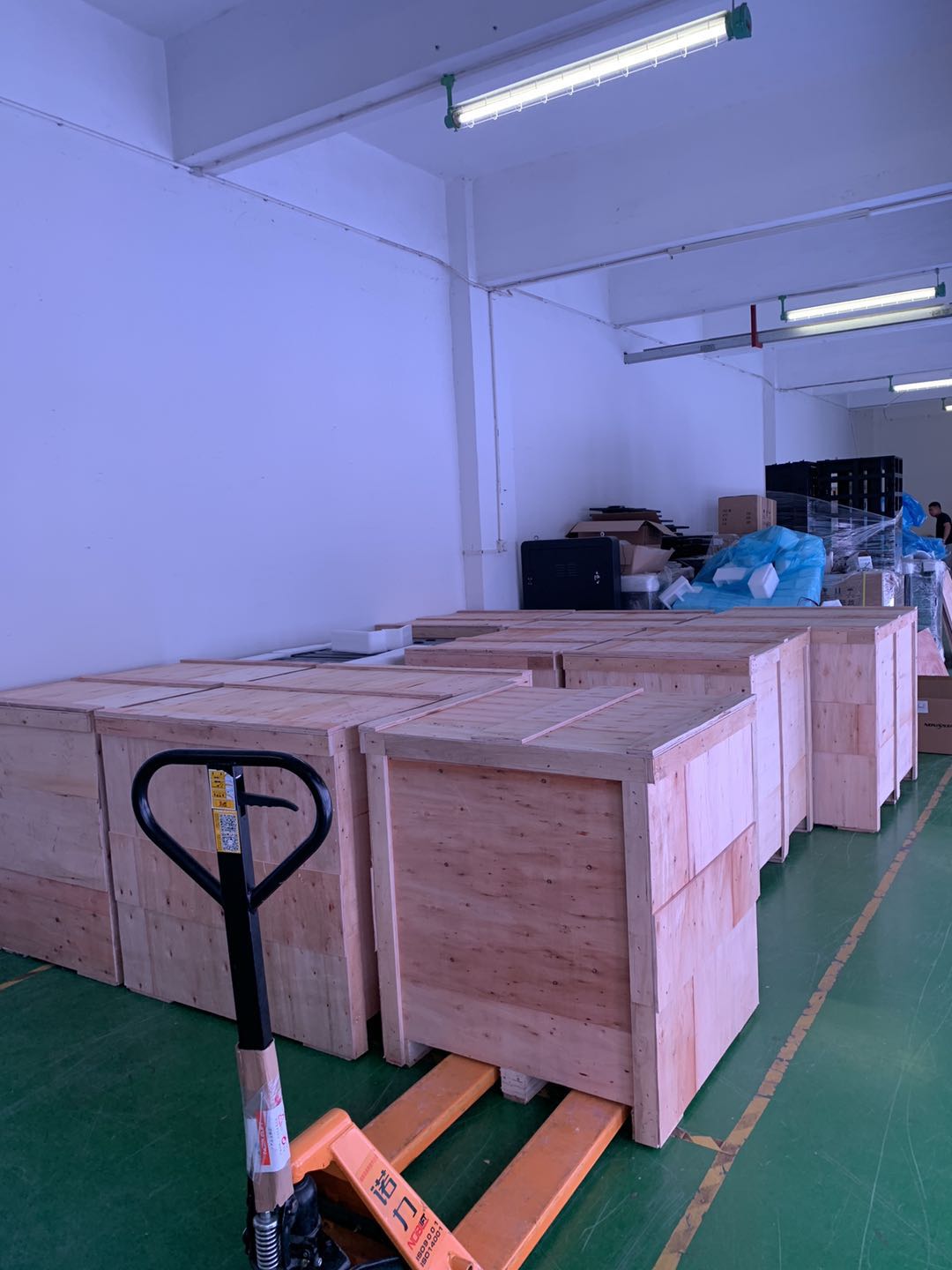

    Regular plywood package:

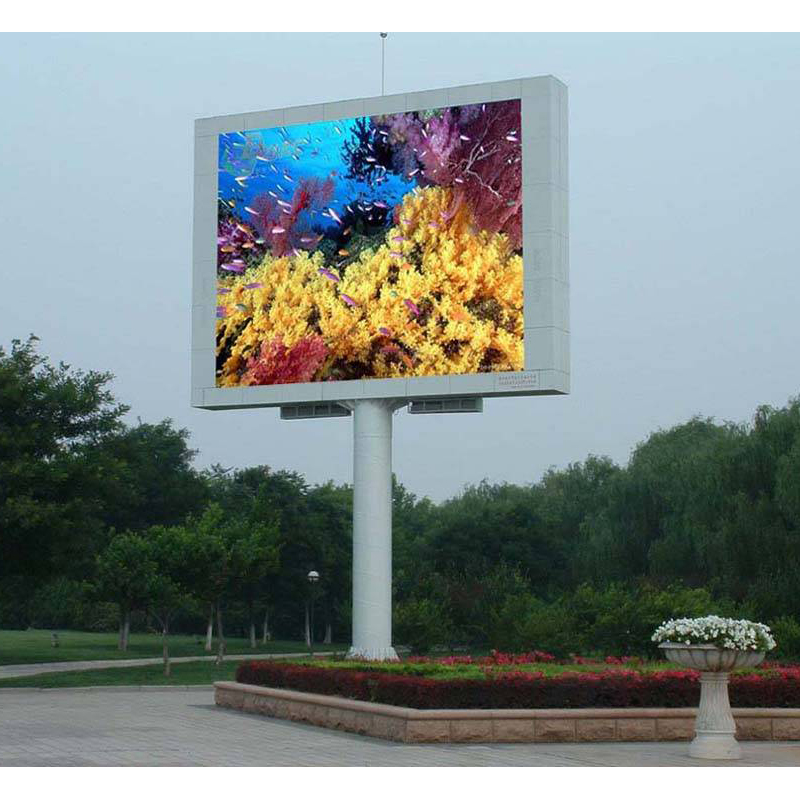

    Common outdoor product project case:


    FAQ:


    1. How to select outdoor LED display?


    There is P3 P3.91 P4.81 P4 P5 P6 P8 P10 P16 outdoor LED display .

    Within 20sqm screen ,if you want to display a clear video / picture, P3 to P6 are better .

    20-50sqm,P4 to P10

    More than 50sqm , P8,P10,P16.


    2. How to select indoor LED display?


    There is P1.25 P1.56 P1.667 P1.875 P1.924 P2 P2.5 P2.6 P2.976 P3 P3.91 P4.81 P4 P5 P6 indoor LED display .

    Within 10sqm ,if you want to display a clear video / picture, P1.25 to P2.5 are better ,

    10- 20sqm screen ,P1.667 to P3

    20-50sqm,P2 to P5,

    More than 50sqm , P3 to P6


    4:3 /16:9 rate screen size are optimum viewing size,small size screen need the higher resolution product,and the smaller viewpoint distance need the samller pixel pitch product.


    We are willing to offer you a good solution with best price.


    3. How to select LED cabinet for display?


    A./ If you need to disassemble display frequently ,rental-- Die casting aluminum LED cabinet is better.

    B./ Fixed type installation mode,you can consider the sealed iron LED cabinet /simple iron cabinet(without back doors and fans) /die casting aluminum LED cabinet.
