Stadium SMD2121 62500dots/m2 Flexible LED Video Wall P4

    Buy cheap Stadium SMD2121 62500dots/m2 Flexible LED Video Wall P4 from wholesalers

    Buy cheap Stadium SMD2121 62500dots/m2 Flexible LED Video Wall P4 from wholesalers
    • Buy cheap Stadium SMD2121 62500dots/m2 Flexible LED Video Wall P4 from wholesalers
    • Buy cheap Stadium SMD2121 62500dots/m2 Flexible LED Video Wall P4 from wholesalers
    • Buy cheap Stadium SMD2121 62500dots/m2 Flexible LED Video Wall P4 from wholesalers

    Stadium SMD2121 62500dots/m2 Flexible LED Video Wall P4

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P4
    Certification : CE ,FCC, ROSH CCC
    Price : USD390--USD600 /㎡
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Stadium SMD2121 62500dots/m2 Flexible LED Video Wall P4

    16:9 1080P Stadium Flexible LED Video Wall Screen P4 Front service LED Display module


    Features:

    1. Factory Price: Indoor LED video wall screens come with simple iron cabinet or sealed iron cabinet ,iron LED cabinet widly used for fixed type installation mode.Iron cabinet screen's price is more cheaper than the rental LED cabinet.


    2. 3Years warranty with lifetime maintance ,and 24 hours service.


    3. Hight refresh rate: more than 3840 Hz /s, video/picture wrinkle-less,line-less and stable.


    4. Low brightness and High gray scale:14Bit-16Bit gray scale to bring excellent performance when
    brightness is reduced to 25%.And it can shows a perfect display performance with no shadows.


    5. Install and maintenance LED display: We will design a CAD drawing of steel structrue according to your project for free,you can install screen from the front side,no need to leave too much extra space between screen and the wall,to save the cost of screen's frame , and the thicknees of screen more thinner(including the structure thickness,total 30cm).There will ba a tool for taking off LED module from LED display .We have the innstallation video ,to tecah you step by step.


    6. Mainly used in high level bar /night club , big even shows .Indoor advertising signs building wall ,stage,church LED wall ,gym video wall etc
    7. It is a multimedia led display system that can create virtual scenes and vivid color effects which is prmany used as the background of film studio and digital stage .
    8. Our LED video wall display is equipped with a professional audio and video system to process multiple signals , you can use USB/Smartphone/iPad/Computer to update display content.


    Technical Parameter for P4 INDOOR FIXED LED DISPLAY


    Module Specifications
    1Pixel Pitch4mm
    2Led TypeSMD2121
    3Pixel configuration1R1G1B
    4Module Size256x128mm /320X160mm
    5Module Resolution64x32pixels /80X40 pixels
    6LED ChipEpistar
    7LED brandKinglight/Nationstar/

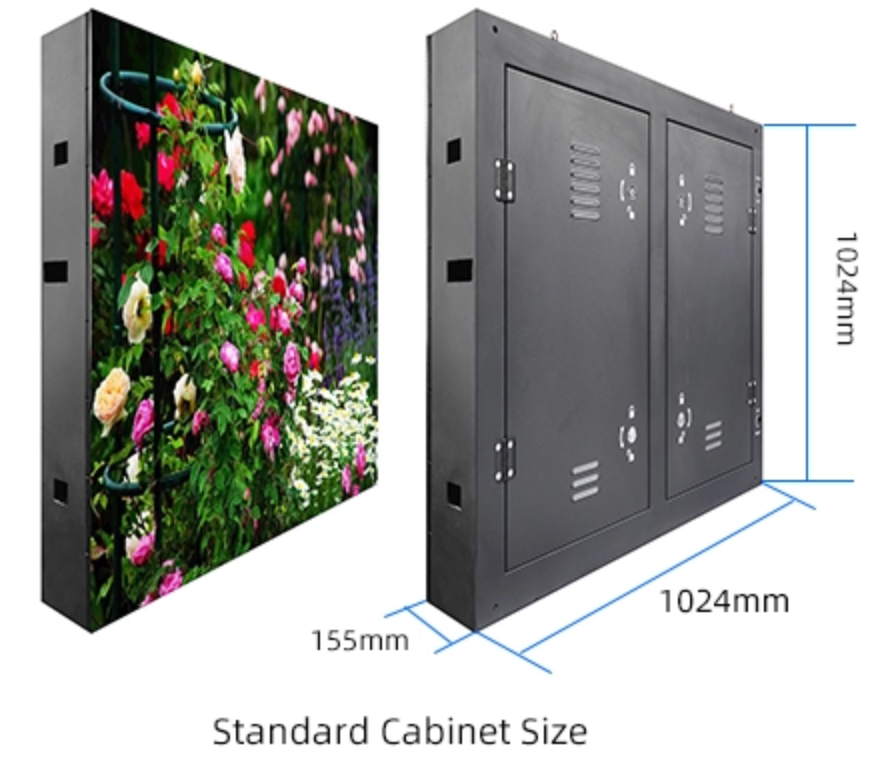

    Cabinet Specification
    1Cabinet Size1024x1024mm /960X960mm
    2Cabinet Resolution256x256 pixels240X240 pixels
    3Module Qty.4x8pcs /3X6pcs
    4Power SupplyChuanglian
    6Cabinet Materialsiron /die casting aluminum
    7Signal flight socket1set Linko
    8Power flight socket1set Linko
    Screen Parameters
    1Pixel density62500dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥1200 CD/sqm
    5Refresh rate≥3840Hz/s
    6Scanning Mode1/16 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥4m
    9Gray Level16 Bit
    10Power InputAC110~AC240V
    11Power ComsuptionMax: 800W/㎡ Average:200W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP40/IP30
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~70℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Maintance AccessBack service/Front service
    20Video processorVDWALL/RGBLIN
    21Control modecomputer /USB/Phone/iPad

    HS code: 8528591090


    LED cabinet viewing:(we accept the iron cabinet without back doors, price will be more cheaper USD45/sqm,and the thickness can be within 14cm)


    Regular plywood case package(flight case package will be an extra cost)

    How to use LED video processor?

    Shipping Information:

    • FOB Port:Shenzhen
    • Lead Time:7 - 15 days
    • Dimensions per Unit:105 × 80 × 60 Centimeters
    • Weight per Unit:140 Kilograms
    • Units per Export Carton:2.1sqm
    • Export Carton Weight:140 Kilograms

    Main Export Markets:

    • Asia
    • Australasia
    • Eastern Europe
    • Mid East/Africa
    • North America
    • Western Europe

    Any third-party trademarks or images shown here are for reference purposes only. We are not authorized to sell any items bearing such trademarks.

    Payment Details:

    • Payment Method:
    • Telegraphic Transfer T/T, PayPal, L/C, D/A, D/P, Western Union or other

    Product Certifications

    • Certificate Standard:EMC View verified certificate
    • Certificate Number:TMC160628003-E
    • Issue Date:04-Jul-2014
    • Issued By:TMC Testing Services(Shenzhen) Co.,Ltd
    • Expiry Date:04-Jul-2025
    • Scope/Range:Security
    • Certificate Standard:FCC View verified certificate
    • Certificate Number:TMC160628004-E
    • Issue Date:04-Jul-2016
    • Issued By:TMC Testing Services(Shenzhen) Co.,Ltd
    • Expiry Date:04-Jul-2025
    • Scope/Range:Environmental protection
    • Certificate Standard:ROHS View verified certificate
    • Certificate Number:TMC160628003-C
    • Issue Date:04-Jul-2016
    • Issued By:TMC Testing Services(Shenzhen) Co.,Ltd
    • Expiry Date:04-Jul-2025
    • Scope/Range:Environmental protection
