    P3.91 Interactive Led Floor Screen

    Ask Lasest Price
    Brand Name : XGCLED
    Model Number : P3.91 LED floor display
    Supply Ability : 5000 square meter per month
    Delivery Time : 7-20days
    • Product Details
    • Company Profile

    P3.91 Interactive Led Floor Screen


    P3.91 Full Color Floor Led Display Infrared Sensor Cabinet 500mmX1000mm


    1) Product features intriduction


    • Super brighness led lamp bead gold wire package and a grade raw material plastic packing
    • High-end LED screen special waterproof silica gel
    • PCB adopts exclusive line design
    • The signal cable and power cable adopt to the standard design
    • LED lamp bead bracket pure copper bracket , red light 12mil , blue green 13 mil .
    • The PC cover anti-slip and the bear weight is about 2T.
    • Realization of human -computer interaction experience (abbreviation : interactive effect)

    Module Specification
    1Pixel Pitch3.91mm
    2Led TypeSMD1921
    3Module Size250*250mm
    4Module Resolution64*64 pixels
    5Driving IC2038S
    6LED lampKinglight

    Cabinet Specification

    1Cabinet Size500*1000mm
    2Cabinet Resolution128*256 pixels
    3Module Qty.2X4pcs
    4Cabinet MaterialsDie-casting Aluminum
    5Cabinet Weight10kg

    Screen Parameters

    1Screen SizeCustemized size
    2Screen thicknessCabinet 85mm + mop 130-170mm adjusted
    3Viewing Distance5~60m
    4Brightness≥2300cd/m2
    5Scanning Mode1/16scan
    6Viewing AngleH: 120°;V: 120°
    7Cpntrol distanceLess than 100m Using International Standard net cable (RJ45 ); over 100m distance ,using fiber for controlling
    8Gray Level14-16 Bit
    9Refresh Frequency≥1920 Hz
    10Power InputAC 100~240V, 50~60Hz
    11Power ComsuptionMax: 800W/ Average: 300~400W/
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeFront IP67 , Rear IP65
    15Operating Temperature-20℃~+60
    16Storage Humidity10~60RH
    17Control SyetemNovastar
    18Operating SystemWindows98/2000/NT/XP
    19Power SupplyG-ENERGY
    20Interactive systemLaser sensor + camera
    21Maintance Accessfront service
    22Display function file formatsAVI, MOV, MPG, DAT, VOB

    2) Product usage


    This technical specifation is only application to the use of XGCLED company light P3.91 floor tile sccreen

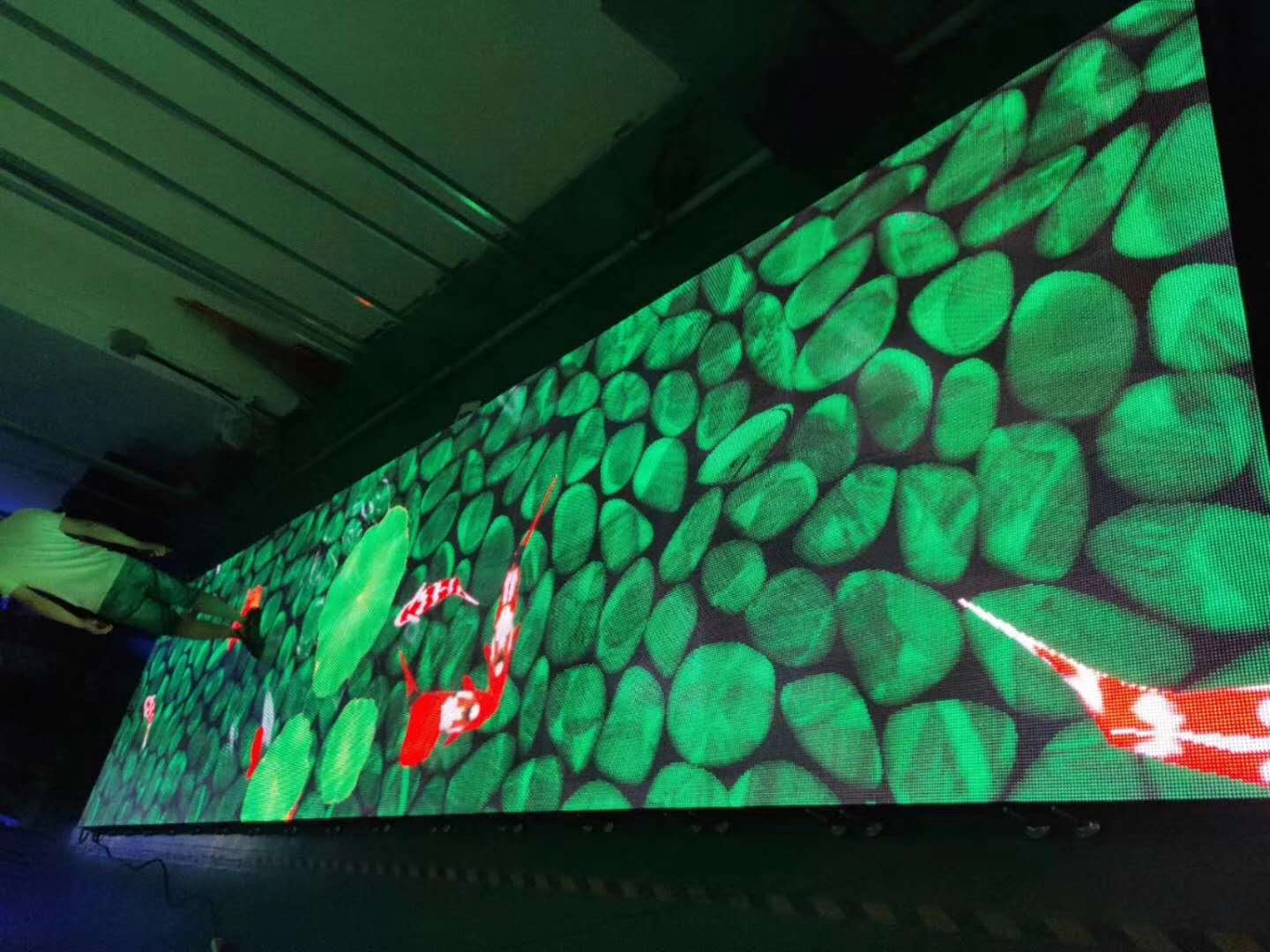

    The special effect of floor tile screen in the stage performance has been fully and vividly , creating an audio-visual

    feast that is magnificent and modern.


    P3.91 LED floor tile screen modular luminescent lamp bead mini SMD1921three -in -one design

    Which make LED floor tile screen indoor and outdoor have a good effect.

    LED floor brick screen adopts constant current drive chip and input buffer chip , The XGCLED control system

    can display video animation and image text information and characteristics.
