    Front Maintenance Nationstar SMD1010 Indoor Led Video Wall

    Ask Lasest Price
    Brand Name : XGCLED
    Model Number : P1.5625
    Price : USD$5860 / square meter
    Payment Terms : T/T, Western Union
    Supply Ability : 5000 square meter per month
    Delivery Time : 7-20 Working days
    • Product Details
    • Company Profile

    Front Maintenance Nationstar SMD1010 Indoor Led Video Wall

    Front maintenance small pixel pitch indoor led display video wall P1.5625mm


    Technical Parameter and Quotation for PH1.5625 Indoor Led Display
    Module Specifications
    1Pixel Pitch1.5625mmFront Maintenance Nationstar SMD1010 Indoor Led Video Wall
    2Led TypeSMD1010
    3Module Size200x100mm
    4Module Resolution128x64 pixels
    5Driving ICICN2153
    6LED lampNationstar
    Cabinet Specification
    1Cabinet Size400x300mm
    2Cabinet Resolution256x192 pixels
    3Module Qty.2x3pcs
    4Cabinet MaterialsDie-casting Aluminum
    5Cabinet Weight3Kg
    Screen Parameters
    1Screen Size10X1.8m
    2Screen Resolution6400x1152
    3Cabinet Qty.150
    4Brightness500-800cd/m2
    5Scanning Mode1/32scan
    6Viewing AngleH:140°;V:140°
    7Viewing Distance>1m
    8Gray Level16 Bit
    9Refresh Frequency≥3840 Hz
    10Power InputAC 220-240V
    11Power ComsuptionMax: 1200W/ Average: 400W/
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP40
    15Operating Temperature-30~ 50
    16Storage Humidity10~70RH
    17Control SyetemNovastar
    18Operating SystemWindows10/2000/XP
    19Power SupplyG-ENERGY
    20Maintance AccessFront service

    1) Module image


    Front viewing of LED moudle



    Back viewing of LED moudle

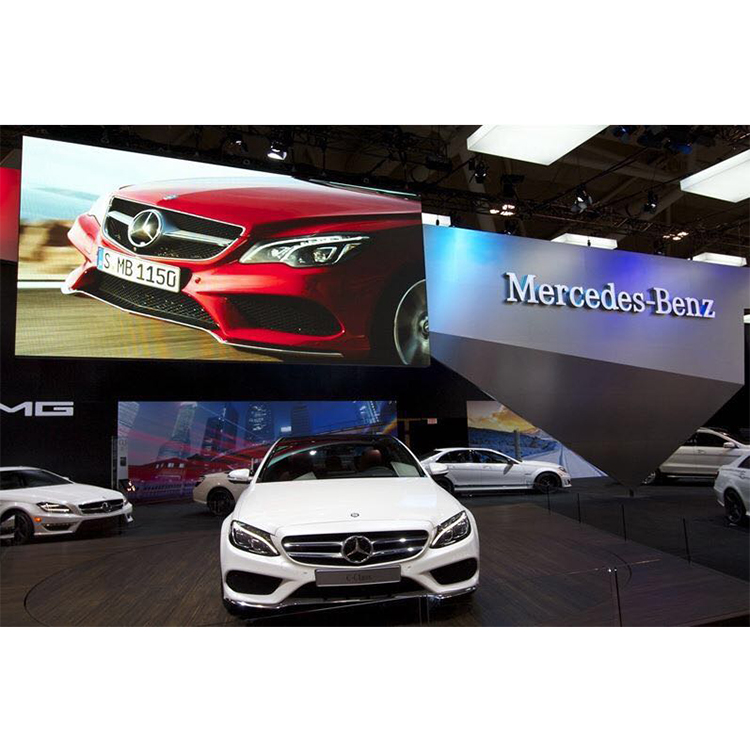

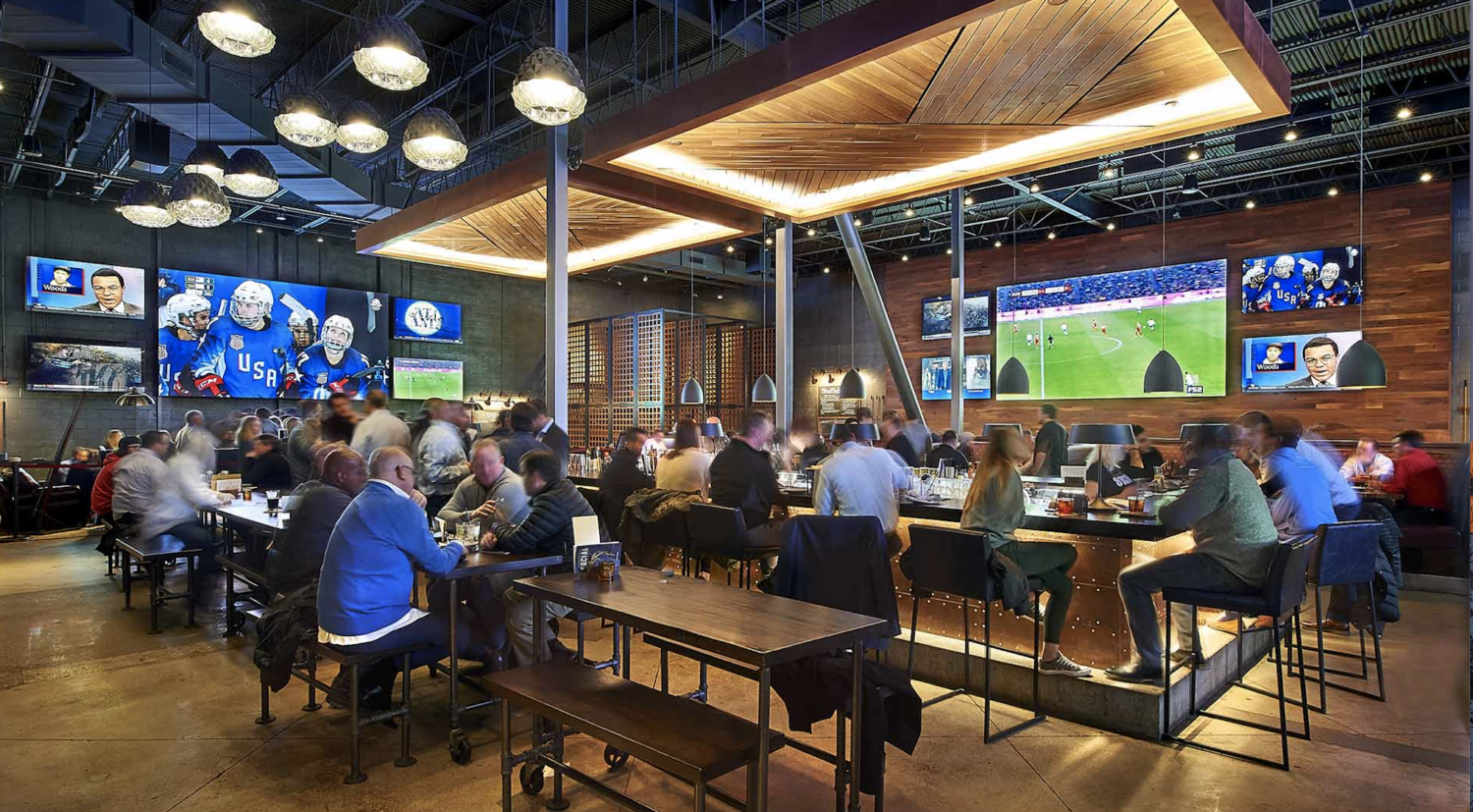

    2) Application image



    3) Regular packing (Fright case 6 pcs or 8pcs in one box)



    4) FAQ


    Q1: What 's the warranty of your LED display screen ?


    A1: We have 2~3 years warranty for our led display screen , and 100,000 hours life span of the led lamps.


    Q2 : What's your payment term? How long it takes to delivery ?


    A2: We accept T/T , For both T/T at least 30% deposit in advance , and the rest 70% before delivery our average production time is 7-15 days after received the deposit .


    A3: What's the control system?


    Q3 : For synchronization control : We use Nova , Linsn or colorlight control system.

    For asynchronization control : We use onbon , or xixun control system .


    Q4: How can you ensure the led display product quality ?


    A4: Our led display screen quality is our core competence for 10 years , what we rely on , we have each standard process to make quality products. If any quality failures within warranty time , we will retund you on email or wechat .
