    Die Casting Aluminum P3 SMD2121 LED Stage Backdrop Screen

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P3
    Certification : CE ,FCC, ROSH CCC
    Price : USD530--USD700 /㎡
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Die Casting Aluminum P3 SMD2121 LED Stage Backdrop Screen

    Indoor RGB SMD2121 P3 rental die casting aluminum LED stage backdrop display screen


    Description

    Our P3 rental LED display is made of 576mm x 576mm /768X768mm die-casting aluminum cabinet.

    It's ultra-thin and super-light. With special locks, only 3 steps to install the adjacent panels, more convenient & fast to install and disassemble.


    Features:
    (1) High definition, 111111pixels/sqm, can show vivid images and video clearly. It's mainly for conference, meeting room, where it needs connect camera for live video.

    (2) Just 8 KG per panel,75mm thickness, can stand alone.

    (3) It is extremely easy to calculate the size of LED screen.


    (4) With die-casting aluminum cabinet, tolerance can be controlled within 0.1mm so the surface is very smooth.


    (5) We have u unique masks so the surface is very smooth, viewing angle is wider than other suppliers in China!


    (6) The panel can be hung on truss or stacked on floor.
    We produce a lot so we have good prices and stable quality, welcome to contact us for more details.


    Technical Parameter for P3 INDOOR LED DISPLAY


    Module Specifications
    1Pixel Pitch3mm

    Common indoor die casting aluminum cabinet with back doors &

    signal /power flight sockets




    2Led TypeSMD2121
    3Pixel configuration1R1G1B
    4Module Size192x192mm
    5Module Resolution64x64pixels
    6LED ChipEpistar
    7LED brandHongsheng/Forest/ Kinglight/Nationstar/
    Cabinet Specification
    1Cabinet Size576x576mm
    2Cabinet Resolution192x192 pixels
    3Module Qty.3x3pcs
    4Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet Materialsdie casting aluminum
    7Power flight socket

    1set


    8Signal flight socket1 set
    Screen Parameters
    1Pixel density111111dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥1200 CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Mode1/32 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥3m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 800W/㎡ Average:240W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP40/IP30
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~70℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessBack service/Front service
    21Control modecomputer /USB/WIFI/4G

    HS code: 8528591090

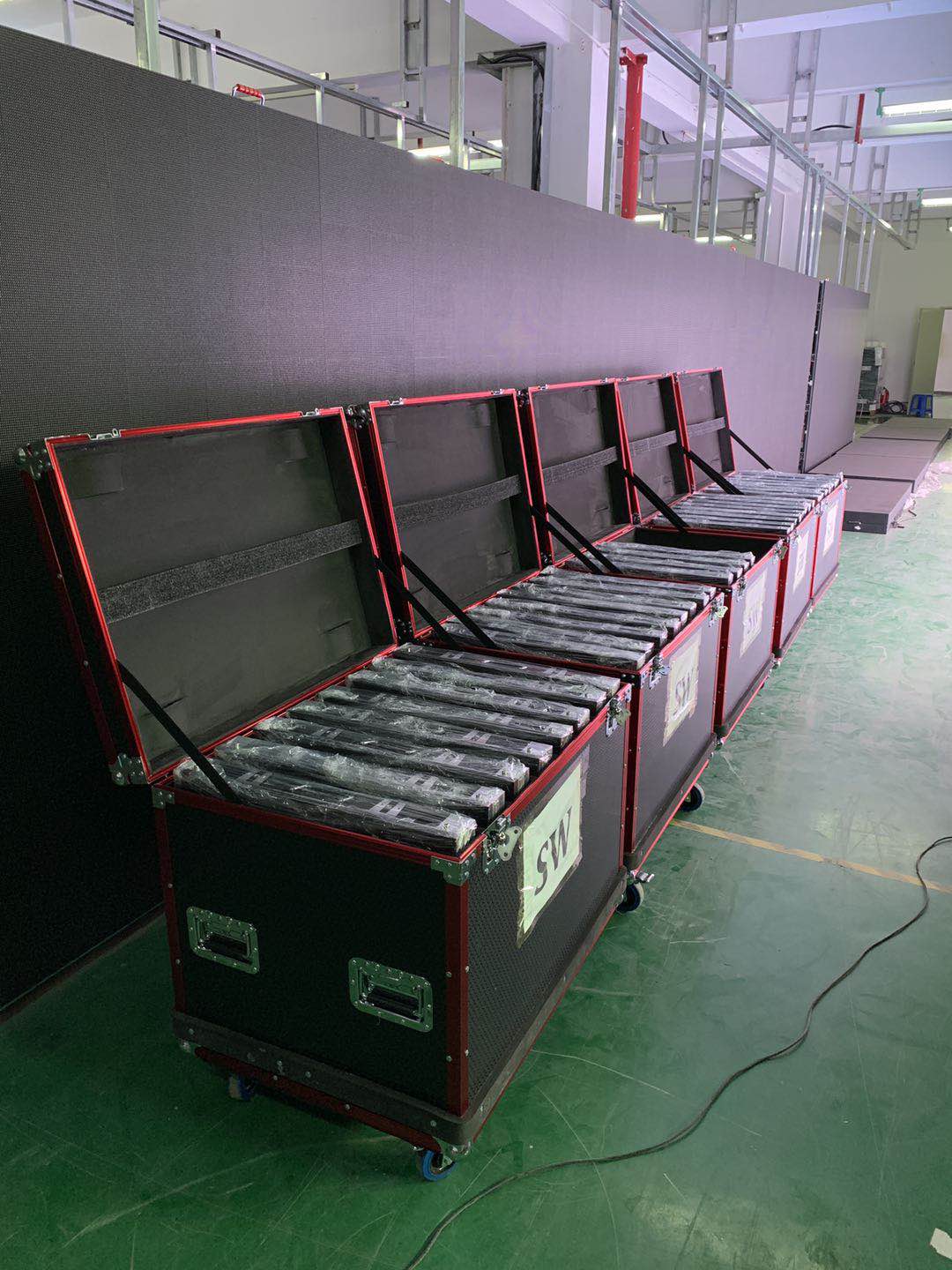

    Regular Flight case package(plywood also available,price will be cheaper)

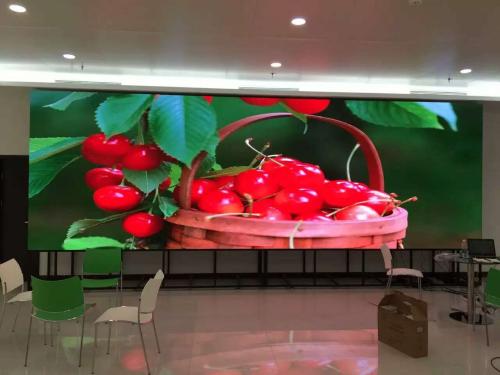

    Common indoor product project case:



    FAQ

    Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
    A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.


    Q2:What pixel pitch should I choose on my display?
    A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
    desired effect and the customer budget.


    Q3: To order a display ,What kind of information do I have to offer you?

    A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.


    Q4:How to install?
    A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
    free remote debugging. We can also send our engineers to the site to guide the installation if needed.


    Q5:What about your quality?
    A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,
    strictly control the production process, and pass the multiple quality inspection to ensure that every
    product is qualified.


    Q6:What about the warranty?

    A:2-3 year warranty


    Q7:What about the lead time?
    A:Orders less than 50 square meter display, lead time is 7-15 working days.


    Q8:Can I order a sample?
    A:Yes,We welcome customers to order samples to check our product quality of our products and service.
