Epistar Events Led Display

    Buy cheap Epistar Events Led Display from wholesalers

    Buy cheap Epistar Events Led Display from wholesalers
    • Buy cheap Epistar Events Led Display from wholesalers
    • Buy cheap Epistar Events Led Display from wholesalers
    • Buy cheap Epistar Events Led Display from wholesalers
    • Buy cheap Epistar Events Led Display from wholesalers

    Epistar Events Led Display

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P3.91
    Certification : CE ,FCC, ROSH CCC
    Price : USD420--USD600 /pcs
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Epistar Events Led Display

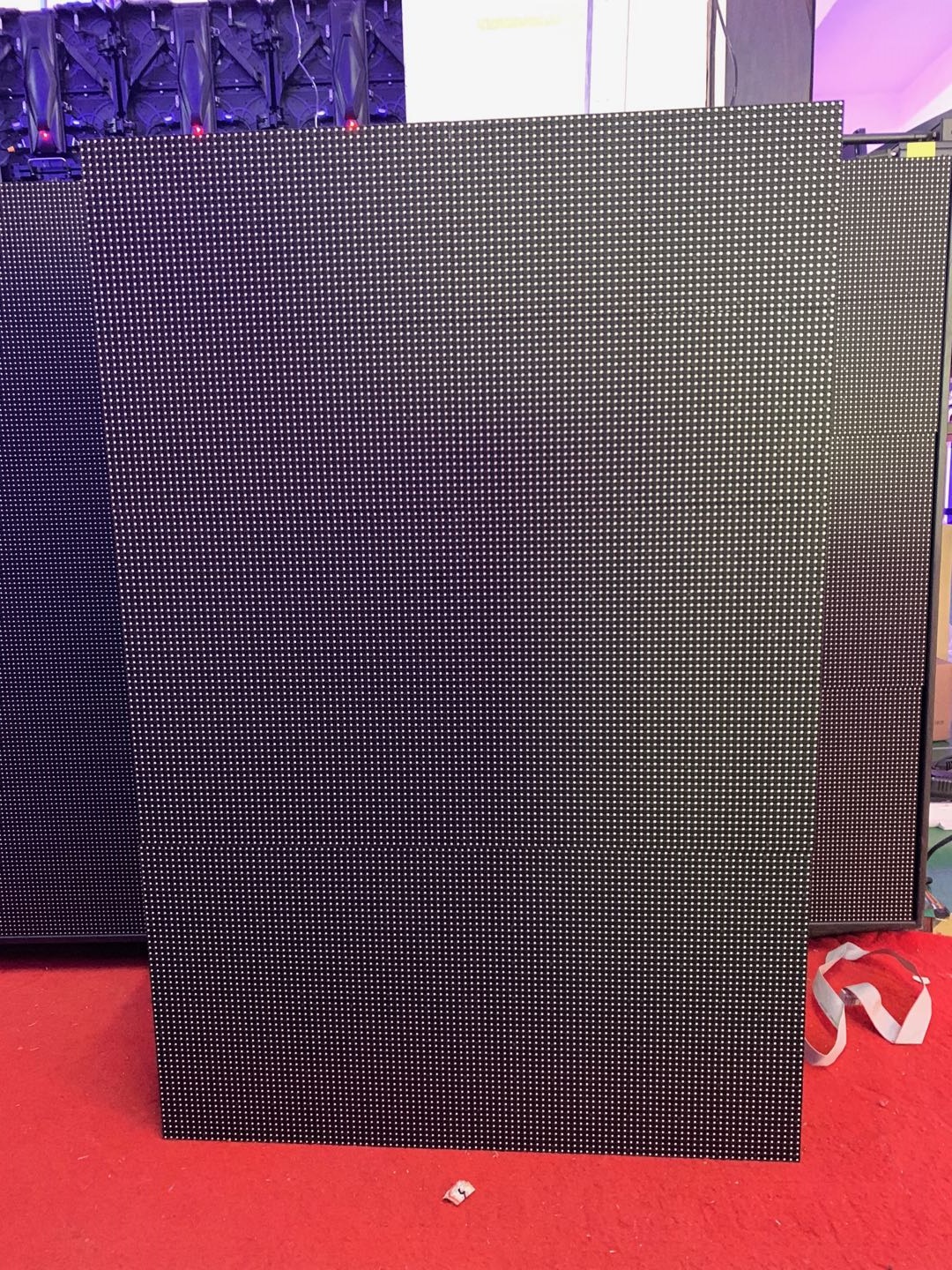

    Indoor full color LED screen P3.91 mobile LED advertising billboard display panel

    Product Description:

    1. High refresh rate can be reached 3840HZ. With the best quality IC ICN2053/MBI5153, it can show you the perfect visual effect.


    2. No need to disassemble the whole screen for maintenance. Each components can be detached individually for that purpose.


    3. No need to maintenance screen from the back side, thin installation steel structure,no need to leave maintenance access.


    4. Specially designed masks can make the horizontal viewing angle up to 140 degrees.


    5. The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.


    6. Combined with the brightness auto-adjusting technology and PFC power supply, low current can save energy over 35%, it means to save 35% money.


    Technical Parameter for P3.91 INDOOR FRONT SERVICE LED DISPLAY

    Module Specifications
    1Pixel Pitch3.91mm
    2Led TypeSMD2121
    3Pixel configuration1R1G1B
    4Module Size250x250mm
    5Module Resolution64x64pixels
    6LED ChipEpistar
    7LED brandHongsheng/Forest/ Kinglight/Nationstar
    Cabinet Specification
    1Cabinet Size500x1000mm
    2Cabinet Resolution128x256 pixels
    3Module Qty.2x4pcs
    4Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet MaterialsIron
    7Power flight socket

    1set


    8Signal flight socket1 set
    Screen Parameters
    1Pixel density65536dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥1200 CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Mode1/16 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥4m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 700W/㎡ Average:240W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP40/IP30
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~70℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessBack service/Front service
    21video processorColorlight/Novastar/Linsn/VDWALL/RGBLINK
    22Control modecomputer /USB/WIFI/4G

    HS code: 8528591090


    Cabinet design in detail:(cabinet with back doors and fan are available.)

    Connect diagram:

    Regular plywood case package(flight case package will need extra price.)



    Our Services

    1)Training after order

    After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment


    2) Installation and debugging

    We could send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.


    3) Warranty

    Warranty: 2-3 years warranty, lifetime maintenance

    Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.


    4) Maintenance

    Maintenance principles: response in time, solve problems asap and ensure the use.

    Maintenance period: In the maintenance period of the led display body, free of all maintenance charges

    After maintenance period, only charge the material cost and labor cost.
