SMD2121 RGB P2.5 Flexible Curved Creative LED Display Screen

    Buy cheap SMD2121 RGB P2.5 Flexible Curved Creative LED Display Screen from wholesalers

    Buy cheap SMD2121 RGB P2.5 Flexible Curved Creative LED Display Screen from wholesalers
    • Buy cheap SMD2121 RGB P2.5 Flexible Curved Creative LED Display Screen from wholesalers
    • Buy cheap SMD2121 RGB P2.5 Flexible Curved Creative LED Display Screen from wholesalers
    • Buy cheap SMD2121 RGB P2.5 Flexible Curved Creative LED Display Screen from wholesalers
    • Buy cheap SMD2121 RGB P2.5 Flexible Curved Creative LED Display Screen from wholesalers

    SMD2121 RGB P2.5 Flexible Curved Creative LED Display Screen

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P2.5
    Certification : CE ,FCC, ROSH CCC
    Price : USD560--USD900 /㎡
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    SMD2121 RGB P2.5 Flexible Curved Creative LED Display Screen

    Indoor RGB SMD2121 LED TV P2.5 flexible curved iron LED video wall display screen


    FAQ:


    1. What is the material of curved LED display?


    There are iron and aluminum material.

    For the iron curved LED cabinet, we can make the simple iron cabinet,and sealed iron LED cabinet(cabinet comes with back doors and fans.)

    The other type of cabinet is die casting aluminum LED cabinet,under this type of LED cabinet, only p2.976,p3.91,p4.81 500X500mm and 500X100mm LED panel are available.


    2. What video processor you have?


    We can offer RGBLINK, VDWALL ,KYSTAR,Novastar,Colorlight,Linsn etc.

    Novastar,Colorlight,Linsn have the 2 in1 controller(sending card and video processor are 2 in 1,it is very convenient to connect with screen, price is more cheaper.)


    3. How to maintenance the curved LED screen?

    We have two type maintenance product, front maintenance and back maintenance two option.

    The front maintenance product:you can take off LED module from the front side of screen ,only need to leave 20-30cm space between screen and the wall .

    The back maintenance screen needs to leave 60-80cm space to maintenance screen from the back side.


    Technical Parameter for P2.5 INDOOR LED DISPLAY


    Module Specifications
    1Pixel Pitch2.5mm

    Indoor iron curved cabinet without back doors &

    signal /power flight sockets




    2Led TypeSMD2121
    3Pixel configuration1R1G1B
    4Module Size320x160mm
    5Module Resolution128x64pixels
    6LED ChipEpistar
    7LED brandHongsheng/Forest/ Kinglight/Nationstar/
    Cabinet Specification
    1Cabinet Size960x960mm
    2Cabinet Resolution384x384 pixels
    3Module Qty.3x6pcs
    4Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet Materialsiron cabinet
    7Power flight socket1set
    Screen Parameters
    1Pixel density160000dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥1200 CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Mode1/32 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥2.5m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 800W/㎡ Average:240W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP40/IP30
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~70℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessBack service/Front service
    21Control modecomputer /USB/WIFI/4G

    HS code: 8528591090

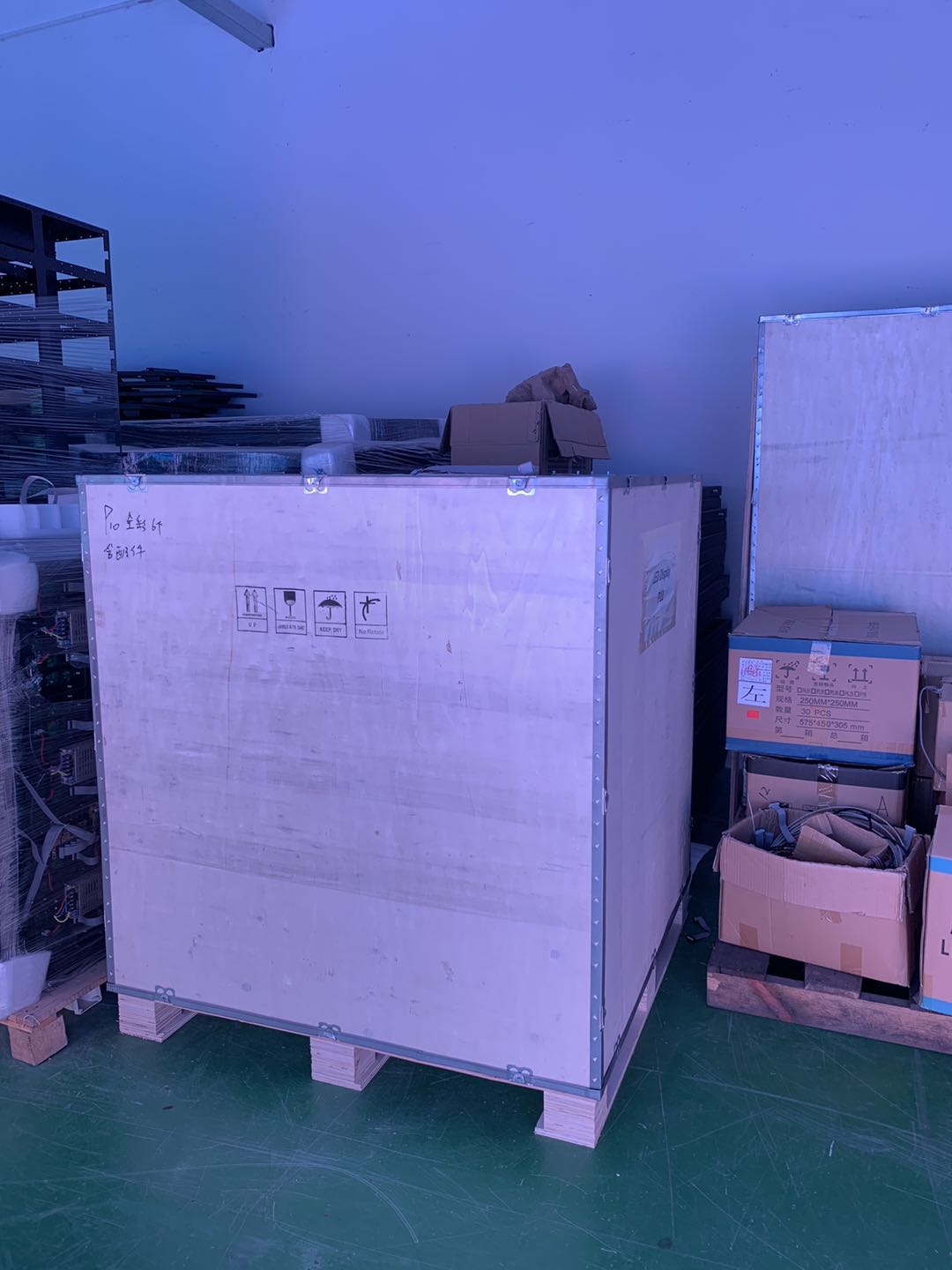

    Regular plywood package:(Flight case also available,but need to pay extra cost.)

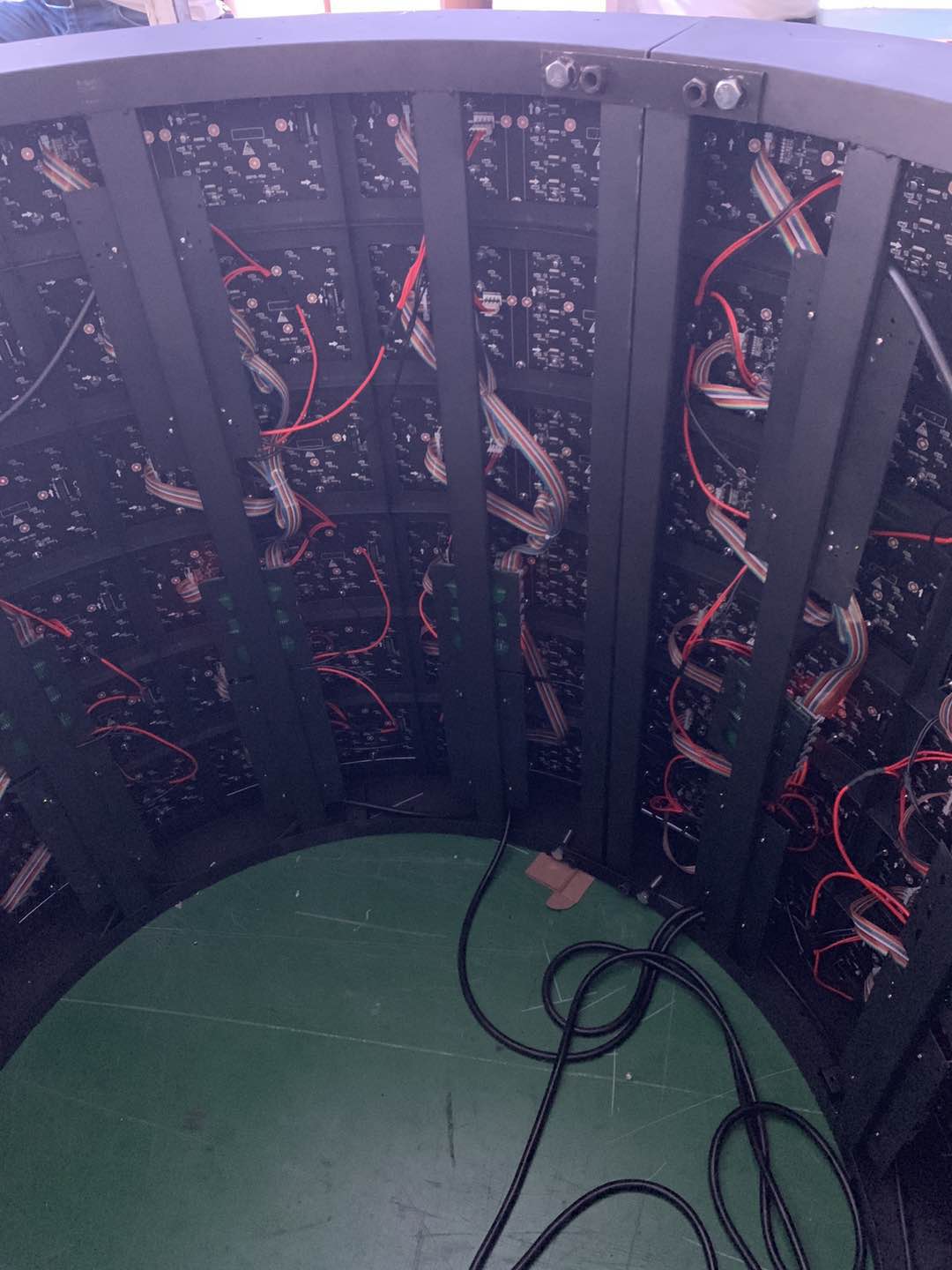

    Indoor LED display project case:


    Primary Competitive Advantages:

    • Service

    • Small Orders Accepted

    • Reputation

    • Experienced Staff

    • Green Product

    • Guarantee/Warranty

    • International Approvals

    • Military Specifications

    • Packaging

    • Price

    • Product Features

    • Product Performance

    • Prompt Delivery

    • Quality Approvals

    • Good after-sales service

    • Factory selling

    • Hot-selling style

    Trade terms:
    1. Payment terms: by T/T, 30% advanced payment at time of order placement and the balance before shipment
    2. Lead-time: 7-15 working days after receiving 30% deposit and balance before the shipment
    3. Price term: EXW Shenzhen
    4. Shipment: by sea or by air, Shenzhen Port
    HS code: 8528591090
    5. Packing: foam packing in wooden carton or flight case
    6. Warranty: we offer 2 years warranty
    All products have age testing, shaking testing, waterproof testing, in general, module test is 24H, entire screen test is 72H, a series of testing before delivery can ensure transportation and quality products

    Service:
    1) Your inquiries related to our products or prices will be replied in 24H
    2) Well-trained and experienced staffs to answer all your enquire in fluent English
    3) Customized design is available, OEM and ODM are accepted
    4) Protection of your sales area, ideas of design and all your private information
    5) Technology training
    (A) We provide the technical training for free, which contains the operation training and maintenance training in the factory
    (B) We will send our engineers to your country if necessary
