    Conference Room P1.904 Small Pixel Pitch LED Display

    Ask Lasest Price
    Brand Name : XGCLED
    Model Number : P1.904 small pixel pitch Indoor led display
    Price : USD$3600/square meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 square meter per month
    Delivery Time : 7-20days
    • Product Details
    • Company Profile

    Conference Room P1.904 Small Pixel Pitch LED Display

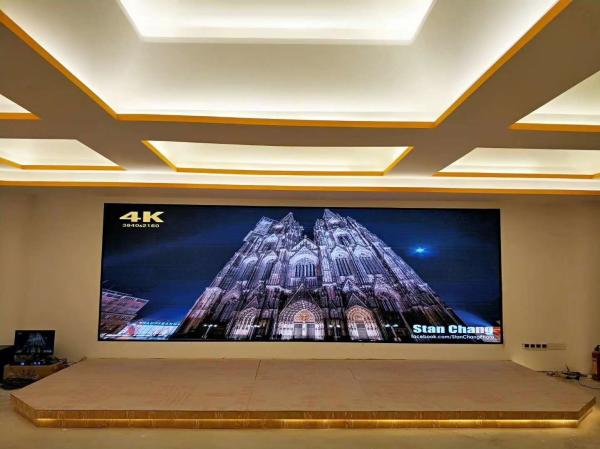

    P1.904 indoor LED display small pixel pitch LED video wall conference room


    Features


    1) Exquise design ,seamless combination


    Cabinet designed with die casting alminum structure , extrem light and slim , CNC processing high precision ,

    Seamless combination


    2) Easy front access maintenace


    Module structure easy to realize front access maintenance , installation by fixing magnets , easy and convenient

    dismenting of moudles without the use of tools(only 30s ), unique protection structure which protect moudules

    from damging .


    3) Low consumption energy saving


    PWM driving IC , 3840Hz high definition refresh rate .


    4.2V voltage design , Low power consumption ,energy saving and environment friendly .


    Technical parameter


    1) Module specification


    ItemP1.904P1.667
    Pixel pitch1.904mm1.667mm
    Module size320X160mm320mmX160mm
    Module resolution168X84pixels192X96pixels
    LED typeSMD1010SMD1010

    Cabinet specification


    Cabinet size640X480mm
    MaterialDie casting Aluminum
    Weight9kg

    Screen specification


    Pixel density275625dots/360,000dots/
    Brightness600cd / 600cd/
    Gray level16bit16bit
    Refresh rate3840Hz3840Hz
    IP ratingIP40IP40
    Ave/Max power consumption150W/~500W/150W/m²~500W/m²
    Viewing distance1.9~30m1.6~40m
    Best Viewing angleH160 ° V140°H160 ° V140°
    MBTF>5000hours>5000hours
    The rate<0.0001<0.0001
    EnvironmentalOutdoorOutdoor
    Lifespan100,000hours100,000hours
    working voltage110 V±15%
    or 230 V±15%
    110 V±15%
    or 230 V±15%



    How to select led type?

    In usually,

    For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25

    For outdoor stage will be select P3.91 P4.81 P6.25 P6 P8 P10

    For fixed installed led screen, can select P2 P2.5 P3 P4 P5 P6 P10

    For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10

    if directly to sun,can select outdoor SMD P8, DIP P10

    For big size led screen can select DIP P10 or P16

    Also we have researched outdoor high resolution DIP 3in1: P5 P6 P8 P10,

    there are good for high resolution led screen.


    Welcome to contact us , if you have any question please let us know ,thank you !


    Welcome to visti our factory any time !
