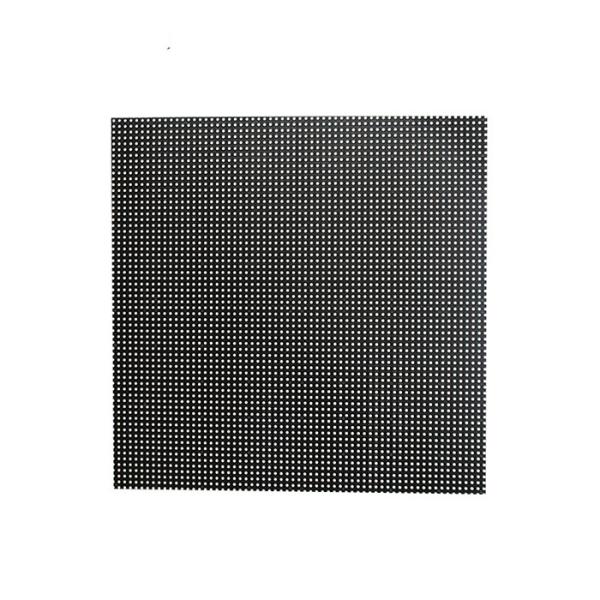

Small Pixel Pitch P2.976 250mmX250mm LED Screen Module

    Buy cheap Small Pixel Pitch P2.976 250mmX250mm LED Screen Module from wholesalers

    Buy cheap Small Pixel Pitch P2.976 250mmX250mm LED Screen Module from wholesalers
    • Buy cheap Small Pixel Pitch P2.976 250mmX250mm LED Screen Module from wholesalers
    • Buy cheap Small Pixel Pitch P2.976 250mmX250mm LED Screen Module from wholesalers
    • Buy cheap Small Pixel Pitch P2.976 250mmX250mm LED Screen Module from wholesalers
    • Buy cheap Small Pixel Pitch P2.976 250mmX250mm LED Screen Module from wholesalers

    Small Pixel Pitch P2.976 250mmX250mm LED Screen Module

    Ask Lasest Price
    Brand Name : XGCLED
    Model Number : P2.976 LED module
    Price : USD$52/PCS
    Payment Terms : T/T, Western Union, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 5000 square meter per month
    Delivery Time : 7-20days
    • Product Details
    • Company Profile

    Small Pixel Pitch P2.976 250mmX250mm LED Screen Module

    Cheap factory price small pixel pitch P2.976 250mmX250mm LED module size


    1. Technical paremeter


    Indoor P2.976 SMD2121 LED module parameter
    Pixel InformationPixel Pitch2.976mm
    Pixel Density112896Pixels/m2
    Pixel Configuration1R1G1B
    LEDs BrandRed: Silan/ Epistar / Cree
    Green:Silan/ Epistar / Cree
    Blue: Silan/ Epistar / Cree
    LEDs WavelengthRed: 615 nm - 625 nm
    Green: 520 nm - 535 nm
    Blue: 465 nm - 475 nm
    LED ModuleModule Size250mm (Width) × 250 mm(Height) = 0.0625/m2
    Module Resolution84 pixels(Width) × 84 pixels(Height) = 7056pixels
    LED CabinetCabinet Size500 mm(Width) × 500mm(Height) = 0.25/m²
    Cabinet Resolution168Pixels(Width) × 168Pixels(Height) = 28224Pixels
    Total QYT Module Per Cabinet2Modules(Width) × 2Modules(Height) = 4Modules
    Cabinet Weight8kgs
    Cabinet MaterialDie casting Aluminum
    PowerInput Voltage110-240V AC, 50/60Hz
    Max Power Consumption1200 Watt/ m²
    Avg. Power Consumption600 Watt/ m²
    ViewingBrightness5000cd/m2
    Brightness UniformityLuminance Discrepancy < 4%
    Colors256X256X256
    Grey Scale(Level)14bits
    Slot Between Neighboring Modules< 1 mm
    Best Viewing AngleHorizontal:160°/ Vertical:140°
    Viewing Distance3-100 Meters
    Ambint ConditionsTemperature RangeStorage:-40 °c to +85°c.; Working:-20°c to +60°c
    Operating Humidity10%-90%RH
    Ingression Protection GradeFront Side: IP31 (Resist spraying of water gun directly);
    Back Side: IP30 (Resist Rain)
    ProcessingScanning ModeReal Pixel , 1/16Scan
    Refresh Frequency1920HZ
    Quality Small Pixel Pitch P2.976 250mmX250mm LED Screen Module for sale
