Indoor Rental HD Full Color SMD P1.667 Led Screen Module

    Buy cheap Indoor Rental HD Full Color SMD P1.667 Led Screen Module from wholesalers

    Buy cheap Indoor Rental HD Full Color SMD P1.667 Led Screen Module from wholesalers
    • Buy cheap Indoor Rental HD Full Color SMD P1.667 Led Screen Module from wholesalers
    • Buy cheap Indoor Rental HD Full Color SMD P1.667 Led Screen Module from wholesalers
    • Buy cheap Indoor Rental HD Full Color SMD P1.667 Led Screen Module from wholesalers
    • Buy cheap Indoor Rental HD Full Color SMD P1.667 Led Screen Module from wholesalers

    Indoor Rental HD Full Color SMD P1.667 Led Screen Module

    Ask Lasest Price
    Brand Name : XGCLED
    Model Number : P1.667 LED module
    Price : USD$117/square meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 square meter per month
    Delivery Time : 7-20days
    • Product Details
    • Company Profile

    Indoor Rental HD Full Color SMD P1.667 Led Screen Module

    Factory price High resolution HD full color SMD P1.667 indoor rental LED module


    How to select led type?

    In usually,

    For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25

    For outdoor stage will be select P3.91 P4.81 P6.25 P6 P8 P10

    For fixed installed led screen, can select P2 P2.5 P3 P4 P5 P6 P10

    For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10

    if directly to sun,can select outdoor SMD P8, DIP P10

    For big size led screen can select DIP P10 or P16

    Also we have researched outdoor high resolution DIP 3in1: P5 P6 P8 P10,

    there are good for high resolution led screen.


    Welcome to contact us , if you have any question please let us know ,thank you !


    Welcome to visti our factory any time !


    Technical parameter


    Our LED lamp are by Sanan , Kinglight , Silan , Epistar , Nation star , Cree etc .


    Driving IC optional brand ICN2037 or MBI5124


    DescriptionTechnical parameter
    Unit moduleModule size200x150mm
    Pixel pitch1.667mm
    Pixel density360000dots/m2
    Pixel configuration1R1G1B
    Led chipsSMD1010 3 in 1 Nation star golden wire
    CabinetDimension400x300mm( die cast aluminum )
    Total weight4.2kg
    Thickness6-7cm
    PowerWorking voltageAC220V/110V±10%
    Current≤20mA(single LED)
    Control systemCPUPentium4 or above
    Control methodSynchronization/ Asychronization
    Main technical parameterDriving device1/30 scan
    Drive typeConstant Current driver IC
    Refresh frequency2800-3840Hz
    Life span≥100,000hours
    Power switchAutomatic switch

    Module front image

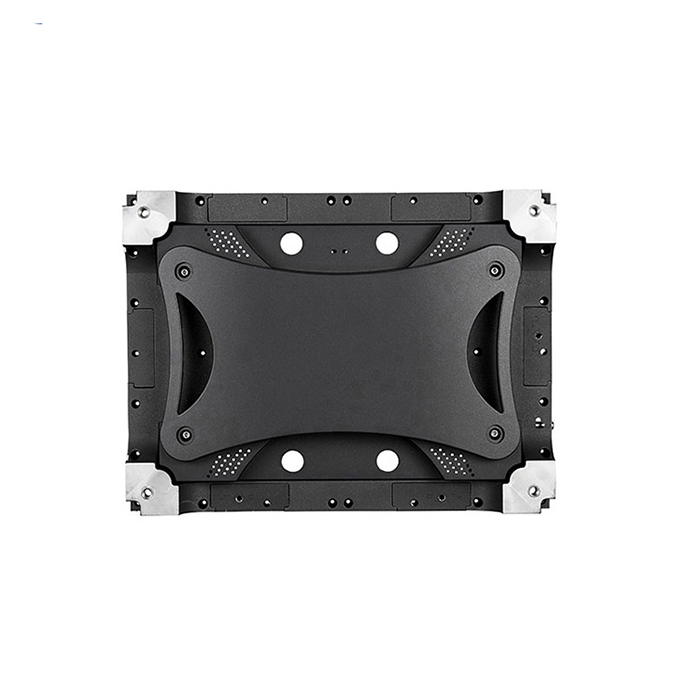

    Module rear image

    Cabinet specification



    Cabinet size400X300mm
    MaterialDie casting Aluminum
    Weight6kg

    Features


    1) Thin and light cabinet


    Simple , Ultra thin and light design , support both front &real maintenance


    2) New design only one installation


    All moudle are in size of 320mmX160mm ,all cabinet in size of 640mmX480mm ,

    so you just need to replace of module if you want a higher definition , it is cost -saving and labor -saving


    3) Low consumption energy saving


    PWM driving IC , 3840Hz high definition refresh rate .


    4.2V voltage design , Low power consumption ,energy saving and environment friendly .


    LED display Screen case
