    1R1G1B 7500CD RGB DIP P16 Outdoor LED Screen Module

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P16
    Certification : CE ,FCC, ROSH CCC
    Price : USD15-USD25/pcs
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    1R1G1B 7500CD RGB DIP P16 Outdoor LED Screen Module

    RGB DIP LED Screen Module Pixels 16mm 7500CD 400g/Pcs 110~220V



    Technical Parameter for P16 OUTDOOR DIP LED DISPLAY


    Module Specifications
    1Pixel Pitch16mm

    Outdoor advertising LED display project case




    2Led TypeDIP346
    3Pixel configuration1R1G1B
    4Module Size256x256mm
    5Module Resolution16x16pixels
    Cabinet Specification
    1Cabinet Size1024x1024mm
    2Cabinet Resolution64x64 pixels
    3Module Qty.4x4pcs
    4Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet Materialsiron cabinet
    7Power flight socket1set
    Screen Parameters
    1Pixel density3906dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥7500 CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Modeconstant current
    7Viewing AngleH:110°;V:110°
    8Viewing Distance≥16m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 1000W/㎡ Average:300W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP65/IP54
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~90℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessBack service/Front service
    21Control modecomputer /USB/WIFI/4G

    HS code: 8528591090


    Regular carton package:(Plywood case will be extra cost.)


    Common outdoor product project case:



    Many type of LED cabinet for you :

    High brightness LED display module P5 outdoor advertising LED digital billboard screen

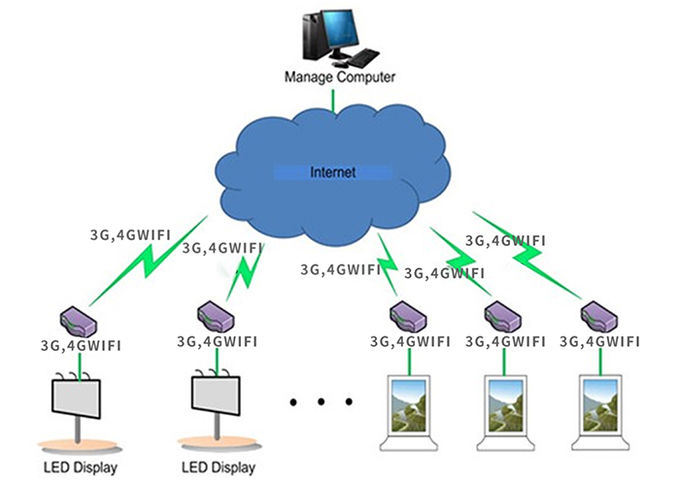

    Remote control mode(supports computer,smartphone/iPad/USB to update content.)

    High brightness LED display module P5 outdoor advertising LED digital billboard screen


    Q1,How to arrange payment?

    Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable


    Q2,What is our warranty?

    Our warranty 2-3 years, basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well


    Q3,How to be our distributor?

    To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time


    Q4, How to maintence led screen?

    In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules


    Q5,How to select led type?

    In usually,

    For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25

    For outdoor stage will be select P3.91 P4.81 P5 P4.81 P6.25 P6 P8 P10

    For fixed installed led screen, can select P2 P2.5 P2.976 P3 P4 P5 P6 P7.62 P10

    For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10 P12

    if directly to sun,can select outdoor SMD P8, DIP P10

    For big size led screen can select DIP P10 P12 P16 or P20

    Also we have researched outdoor high resolution DIP 3in1: P4 P5 P6 P8 P10,there are good for high resolution led screen

    Let us come together to create a lasting relationship,and let us help you in this business well

    If you want more information,welcome to contact us,thanks
