    Indoor Front Service 128X64 dots 320X160mm P2.5 Led Module

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P2.5
    Certification : CE ,FCC, ROSH CCC
    Price : USD21-USD38 /pcs
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Indoor Front Service 128X64 dots 320X160mm P2.5 Led Module

    Indoor front service LED screen display 320X160mm 128X64dots LED module P2.5


    Technical Parameter for P2.5 INDOOR LED DISPLAY


    Module Specifications
    1Pixel Pitch2.5mm

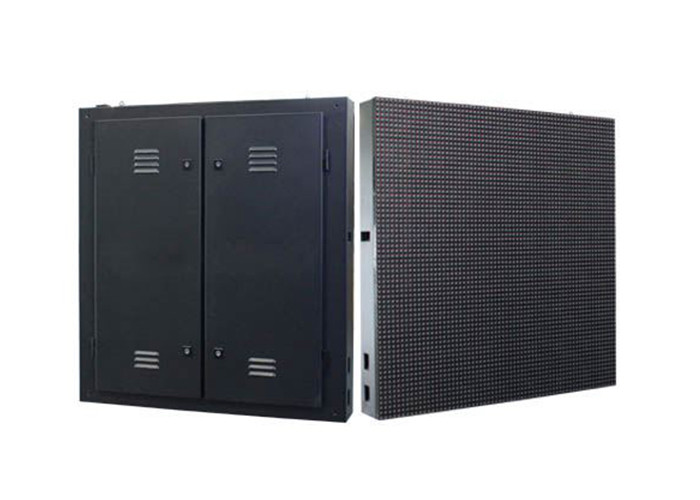

    Standard LED iron cabinet with back doors

    Indoor Front Service 128X64 dots 320X160mm P2.5 Led Module


     School project case
    2Led TypeSMD2121
    3Pixel configuration1R1G1B
    4Module Size320x160mm
    5Module Resolution128x64pixels
    6LED ChipEpistar
    7LED brandHongsheng/Forest/ Kinglight/Nationstar/
    Cabinet Specification
    1Cabinet Size960x960mm
    2Cabinet Resolution384x384 pixels
    3Module Qty.3x6pcs
    4Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet Materialsiron cabinet
    7Power flight socket1set
    Screen Parameters
    1Pixel density160000dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥1200 CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Mode1/32 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥2.5m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 800W/㎡ Average:240W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP40/IP30
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~70℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessFront service
    21Control modecomputer /USB/WIFI/4G

    HS code: 8528591090


    Regular carton package:(Plywood case also available,but need to pay extra cost.)


    Indoor LED display project case:


    FAQ


    1. How can i place an order?
    Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.


    2. What kind of display do we provide?
    We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.


    3. What about the lead time for an order?
    Always: 5-15 days, as your order quantity, sometimes we have stock, can delivery within 5 days.


    4. What about the warranty?
    We have Two/ Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.


    5.How about the quality?
    Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality.


    6. Can you offer a technical support? Since it's my first time....
    We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )

    We're devoted to innovative high-end led display with over 10 years manufacturing experience, and we believe you could get a professional solution and best service from SXGCLED. We're happy to serve you.
    If you need led display screen,welcome to contact us,we can customize according to your needs.
    For more questions about SZXGCLED wholesale price full color smd outdoor/indoor led video display screen fixed with iron cabinet , please contact me of SZXGCLED LED direct OEM manufacturer right now! Welcome any question!
