SMD3535 Mobile LED Billboard

    Buy cheap SMD3535 Mobile LED Billboard from wholesalers

    Buy cheap SMD3535 Mobile LED Billboard from wholesalers
    • Buy cheap SMD3535 Mobile LED Billboard from wholesalers
    • Buy cheap SMD3535 Mobile LED Billboard from wholesalers

    SMD3535 Mobile LED Billboard

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P6
    Certification : CE ,FCC, ROSH CCC
    Price : USD480--USD800 /㎡
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    SMD3535 Mobile LED Billboard

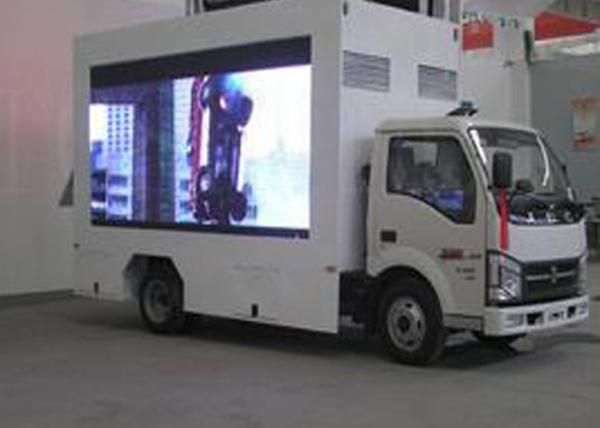

    High brightness Outdoor Moving Three Sides Truck LED Display Mobile LED Billboard


    Products:

    1. Indoor outdoor SMD led display module & cabinet is manufactured by using best quality material,we make the LED module and LED cabinet by ourselves.

    2. Our outdoor LED display can show a clear picture without flicker and distortion.

    3. The final products feature supreme quality and offers best outputs.

    4. High refresh rate and gray scale LED screen ensures the picture quality remains seamless.

    5. All display information can be controlled by remote network. It is easy to replace the screen information with just a click of the mouse to achieve the clustering of advertising display networks in cities and regions.

    6. We offer LED remote type of controller,such as wifi 4G controller ,wifi card ,so that you can control screen in everywhere via internet,it has smartphone iPad computer software,we can show you how to control screen . By the way we also have the HDMI LED controller.


    Technical Parameter for P6 OUTDOOR LED DISPLAY

    Module Specifications
    1Pixel Pitch6mm
    2Led TypeSMD3535
    3Pixel configuration1R1G1B
    4Module Size192x192mm
    5Module Resolution32x32pixels
    6LED ChipEpistar
    7LED brandHongsheng/Forest/ Kinglight/Nationstar/
    Cabinet Specification
    1Cabinet Size960x960mm
    2Cabinet Resolution192x192 pixels
    3Module Qty.3x6pcs
    4Power Supply5V40A 200W/ 5V60A 300W
    6Cabinet Materialsiron cabinet
    7Power flight socket1set
    Screen Parameters
    1Pixel density27777dots/㎡
    2Screen Resolutionaccording to screen size
    3Cabinet Qty.according to screen size
    4Brightness≥5500 CD/sqm
    5Refresh rate≥1920Hz/s
    6Scanning Mode1/8 scan
    7Viewing AngleH:140°;V:140°
    8Viewing Distance≥6m
    9Gray Level16 Bit
    10Power InputAC110~240V
    11Power ComsuptionMax: 1000W/㎡ Average:300W/㎡
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP65/IP54
    15Operating Temperature-35℃~ 65℃
    16Storage Humidity10℃~90℃RH
    17Control SyetemColorlight/Nova/Linsn
    18Operating SystemWindows98/me/2000 /NT/XP
    19Power Supply5V40A 200W/5V60A 300W
    20Maintance AccessBack service/Front service
    21Control modecomputer /USB/WIFI/4G

    HS code: 8528591090


    Outdoor waterproof IP65 LED cabinet viewing:


    Regular plywood package:(flight case also available.)

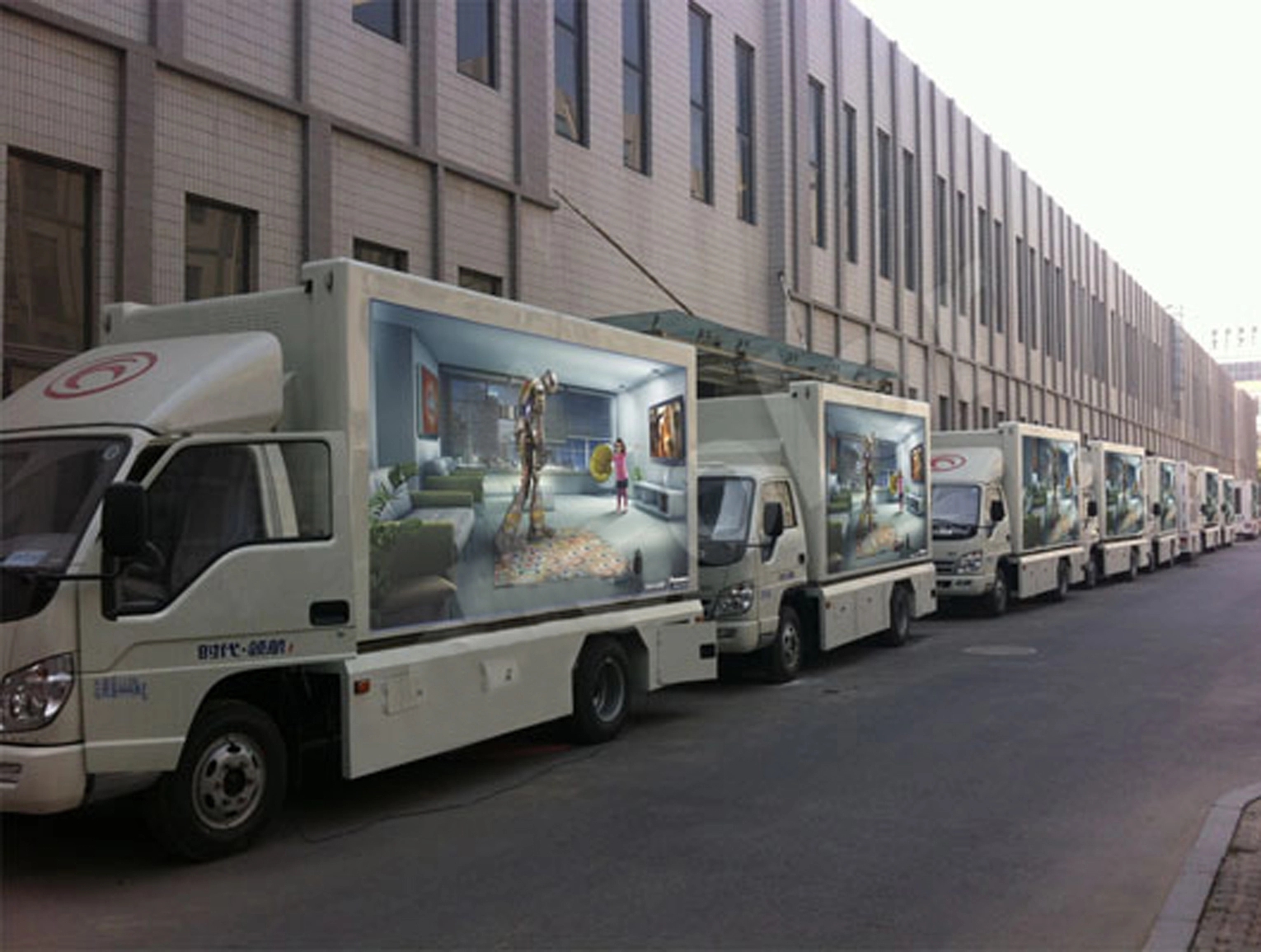

    Project case:

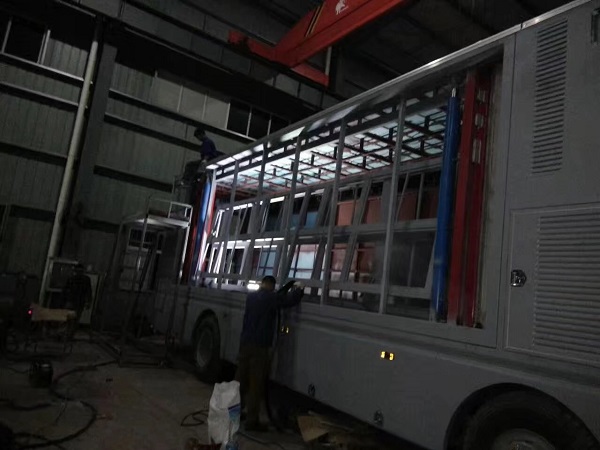

    How to deign truk LED display screen?



    Our service

    1. Your inquiry related to our products or prices will be replied in 24hrs.

    2. Well−trained and experienced staffs to answer all your enquires in fluent English.

    3. OEM&ODM, any your customized screen we can help you to design and put into product.

    4. Good pre-sales and after-sales service, you are warmly welcome to visit our factory to learn the technical and maintenance skills and everything you need in our factory.

    5. Protection of your sales area, ideas of design and all your private information.


    About us

    1. Shenzhen Xing Guang Cai Technology Co.,Ltd was established in 2013, we focuse on the research, production, sales and service of LED technology and full-color LED display screens. Our products are widely used in various public places, such as commercial square, government agencies, sports venues, transportation facilities, financial institutions and more. Our LED display series products include leasing products, billboards, highway signs and stadium screens sold more than 110 countries and regions in Asia, Europe, the US, Africa, Oceania, and more than 30 domestic provinces, cities and autonomous regions throughout. In addition, our capacity per month is more than 5,000 square meters

    2. More than 20 persons of engineering technology and 20 persons quality inspection to make sure good quality and research.

    3. Manufactured by using best quality material,had lots of spot goods, can solve your urgent orders.

    4. Certificated by CE,RoHS,CCC,FCC,UL,

    5. Warmly welcome to visit our factory at any time!
