IP65 1920Hz SMD2525 320X160mm P5 Outdoor Rental LED Display

    Buy cheap IP65 1920Hz SMD2525 320X160mm P5 Outdoor Rental LED Display from wholesalers

    Buy cheap IP65 1920Hz SMD2525 320X160mm P5 Outdoor Rental LED Display from wholesalers
    • Buy cheap IP65 1920Hz SMD2525 320X160mm P5 Outdoor Rental LED Display from wholesalers
    • Buy cheap IP65 1920Hz SMD2525 320X160mm P5 Outdoor Rental LED Display from wholesalers
    • Buy cheap IP65 1920Hz SMD2525 320X160mm P5 Outdoor Rental LED Display from wholesalers
    • Buy cheap IP65 1920Hz SMD2525 320X160mm P5 Outdoor Rental LED Display from wholesalers

    IP65 1920Hz SMD2525 320X160mm P5 Outdoor Rental LED Display

    Ask Lasest Price
    Brand Name : XGCLED
    Model Number : P5 outdoor rental LED display
    Price : $31.44USD/㎡
    Payment Terms : T/T, Western Union
    Supply Ability : 5000 square meter per month
    Delivery Time : 7-20days
    • Product Details
    • Company Profile

    IP65 1920Hz SMD2525 320X160mm P5 Outdoor Rental LED Display

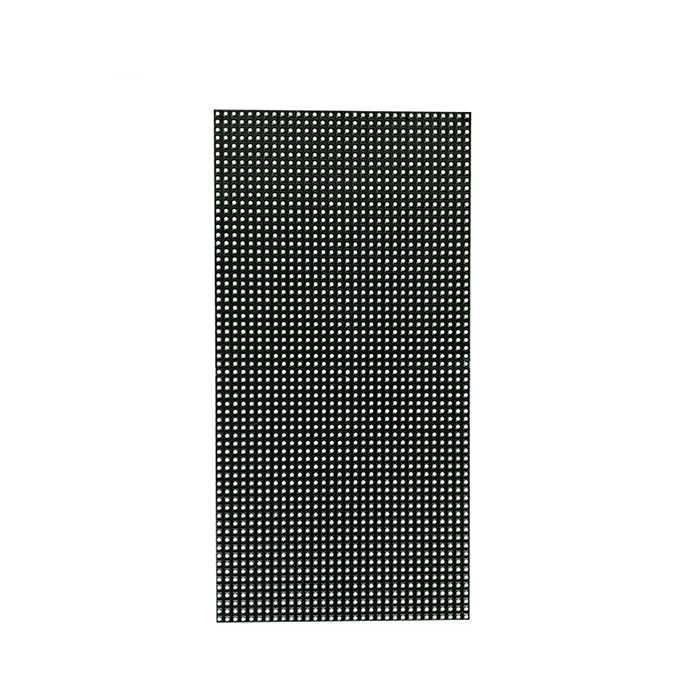

    Full color outdoor P5 led display module 320mmX160mm dimention



    1. Product description

    Slim and light weight , clear display

    Slim cabinet design , high brightness ,high contrast , wide viewing angle , high ash high brush , the picture is clear and bright

    in direct sunlight , display true nature .

    Ultra high protection class

    IP65 or IP43 degree of protection , the use of fully waterproof modules , modular suite of anti-UV, High temperature
    Protect the overall flatness of the screen boby , super weather resistance make it without fear of inciement weather .

    Common good , flexible assembly
    960mmX960mm standard cabinet , pan mounting holes the same size as the standard moudle house between GM ensure the display box struture and consistency .



    2. Technical Specification


    outdoor p5 LED display parameter
    Pixel InfortmationPixel Pitch5mm
    Pixel Density40000Pixels/m2
    Pixel Configuration1R1G1B
    LEDs BrandRed:Silan/Epistar/Nation Star/Kinglight
    Green:Silan/Epistar/Nation Star/Kinglight
    Blue:Silan/Epistar/Nation Star/Kinglight
    LEDsWavelengthRed:615nm-625nm
    Green:520mn-535nm
    Blue:465nm-475nm
    LED ModuleModule Size320mm (Width) × 160 mm(Height) = 0.0512/m2
    Module Resolution64pixels(Width) × 32 pixels(Height) = 2048pixels
    LED CabinetCabinet Size960 mm(Width) × 960mm(Height) = 0.9216/m²
    Cabinet Resolution192Pixels(Width) ×192Pixels(Height) = 36864 Pixels
    Total QYT Module Per Cabinet3Modules(Width) × 6Modules(Height) = 18Modules
    Cabinet Weight28kgs
    Cabinet MaterialDie-cast aluminum
    PowerInput Voltage110-240V AC, 50/60Hz
    Max Power Consumption1200 Watt/ m²
    Avg. Power Consumption600 Watt/ m²
    ViewingBrightness≥5000cd/m2
    Brightness UniformityLuminance Discrepancy < 4%
    Colors16777216
    Grey Scale(Level)14bit
    Slot Between Neighboring Modules< 1 mm
    Best Viewing AngleHorizontal:140°/ Vertical:140°
    Viewing Distance15-200 Meters
    Ambint ConditionsTemperature RangeStorage:-40 °c to +85°c.; Working:-20°c to +60°c
    Operating Humidity10%-90%RH
    Ingression Protection GradeFront Side: IP65 (Resist spraying of water gun directly);
    Back Side: IP54 (Resist Rain)
    ProcessingScanning ModeReal Pixel , 1/8 Scan
    Refresh Frequency1920HZ, Adjustable
    Signal InputDVI, Composite Video for Live Video
    Supported NetworkingThrough LAN/WAN, RS 232/RS485
    ControllerLinsn, Xixun, DB-star, Nova-star,Colorlight etc.
    OtherLife Span100,000 Hours




    3. Die casting Aluminum cabinet image
    4. Product description
    The model is a product independently developed by XGCLED , It means the the screen is made of cabinet like the brick wall .
    Not required the traditional cabinet . Its module size is 320mmX160mm , ultra -thin design . If the wall mounted that the screen can be maintenance via front &rear . IP65 protection grade , waterproof . Its buliding blocks shape that can be flexibly pieced into various screen type like fixed wall mounting , stadium usages, and outdoor stage applications.

    The ultra-light, ultra-thin, uniform color of the smart module significantly reduce the overall screen thickness and the overall screen weight, also save the cost of steel structures for customers, reducing the difficulty of approval, and helping customers create more attractive outdoor led displays. Good heat dissipation design, eliminating cost of air conditioners and reducing the daily electricity cost, is the best outdoor large-screen product to create landmark projects.
