    Church Curved 1R1G1B P4.81 Indoor Rental LED Screen

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P4.81
    Certification : CE ,FCC, ROSH CCC
    Price : USD500--USD800 /pcs
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Church Curved 1R1G1B P4.81 Indoor Rental LED Screen

    P4.81 1R1G1B church Indoor curved LED video wall panel Rental LED Screen


    What is the advantages of our P4.81 led display?


    1. High quality:
    our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 10000 hours.we assure high brightness and long lifespan.


    2. Perfect Display Effect:

    High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.


    3. Attractive Factory Price:

    We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable. Our price is more competitive, quality is more reliable.


    4. Auto equipment:

    We have several auto production lines equipment with Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, and the production of LED meets the demand of high quality standard LED display.


    parameter nameIndoor P4.81

    Module composition

    Pixel structureSurface mount three-in-one LED
    LED SpecificationsSMD1921
    Pixel pitch (mm)4.81
    Module resolution (W × H)52×52
    Module size (mm)250(W)×250(H)

    Box composition

    Box module composition (W × H)2×2
    Cabinet resolution (W × H)104×104
    Cabinet size (mm)500(W)×500(H)×65(T)
    Box materialDie-cast aluminum
    Weight (kg/㎡)26
    Pixel density (dots/㎡)43264
    Box flatness (mm)≤ 0.2

    Optical parameter

    Single point brightnesscorrection
    Single point colorcorrection
    Brightness (nits)3000 adjustable
    Color temperature (K)3000-9300K adjustable
    Gray level (Bit)12/14/16
    Horizontal viewing angle ( °)110
    Vertical viewing angle ( °)90
    Luminous point center distance deviation<3%
    Brightness uniformity≥97%
    Chromaticity uniformity±0.003Cx, within Cy
    Maximum contrast≥3000:1

    Electrical parameter

    Peak power consumption (W/㎡)600
    Average power consumption (W/㎡)200
    Power supply requirementsAC220V (50-60Hz)

    Processing performance

    Drive modeconstant current drive
    Frame change frequency (Hz)60
    Refresh rate (Hz)≥ 1920

    Using parameters

    Typical life (hrs)50,000
    Maintenance methodFront/rear maintenance
    Operating temperature range (°C)-30 - 60
    Storage temperature range (°C)-30 - 60
    Operating humidity range (RH)without condensation 10 - 70%
    Storage humidity range (RH)without condensation 10 - 70%

    HS code: 8528591090

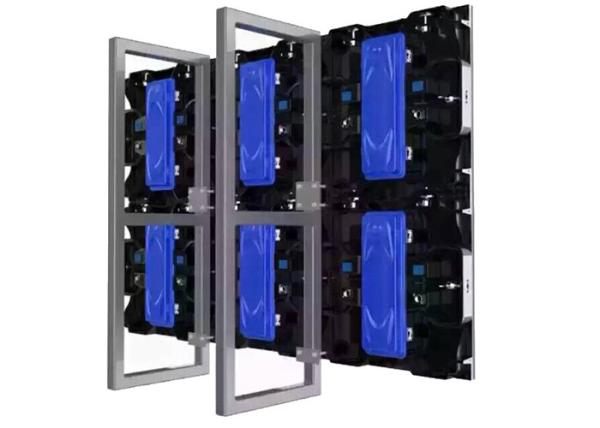

    Cabinet design in detail:

    Video processor connect diagram:


    How to install 500X500mm rental LED cabinet?
