10mm Pixel SMD3535 7500CD/sqm LED Advertising Billboard

    Buy cheap 10mm Pixel SMD3535 7500CD/sqm LED Advertising Billboard from wholesalers

    Buy cheap 10mm Pixel SMD3535 7500CD/sqm LED Advertising Billboard from wholesalers
    • Buy cheap 10mm Pixel SMD3535 7500CD/sqm LED Advertising Billboard from wholesalers
    • Buy cheap 10mm Pixel SMD3535 7500CD/sqm LED Advertising Billboard from wholesalers
    • Buy cheap 10mm Pixel SMD3535 7500CD/sqm LED Advertising Billboard from wholesalers
    • Buy cheap 10mm Pixel SMD3535 7500CD/sqm LED Advertising Billboard from wholesalers

    10mm Pixel SMD3535 7500CD/sqm LED Advertising Billboard

    Ask Lasest Price
    Brand Name : XGC
    Model Number : P10
    Certification : CE ,FCC, ROSH CCC
    Price : USD500-USd900/㎡
    Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
    Supply Ability : 5000㎡ per month.
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    10mm Pixel SMD3535 7500CD/sqm LED Advertising Billboard

    High Way Full Color High Brightness P10 LED Outdoor Curved LED Screen With Frame


    Advantages:


    1. Clear picture without flicker and distortion.


    2. Multiform file formats, such as HDMI, DVI,VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.


    3. Low consumption, stable performance, highly durable.


    4. High brightness ,brightness can be adjusted automatically or manually.


    5. 2 years warranty, easy to install & maintenance.


    6. CE, ROHS, FCC,CCC


    7. Full set product , the buyer no need to arrange the steel structure frame by themselves.


    Module No
    szxgcled-P10
    Pixel pitch
    10mm
    Module size
    160x160mm
    Module resolution
    16x16dots
    Pixel density
    10000 pixels/㎡
    LED package
    DIP 346
    LED lamp
    Nationstar
    Cabinet size
    960x960mm
    Cabinet depth
    65mm
    Cabinet resolution
    96x96dots
    Cabinet weight
    38kg
    Brightness
    ≥7500cd
    Scan mode
    Constant current 1/4 S
    Grey grade
    14bit
    Refresh rate
    ≥1,920hz
    Power consumption
    Max: 650 W/㎡; Average: 200 W/㎡
    Working temprature
    -20℃~80℃
    Working Humidity
    10~90%
    Best viewing distance
    ≥10m
    Viewing Angle
    140°/140°
    Ingress Protection
    Front IP65, Back IP54
    System Operation Platform
    WINDOWS(WINXP/7/8/10)
    LED WavelengthR:620~625nm, G:525~527.5nm,B: 462.5~465nm
    Power SupplyMeanwell LRS-200
    Control modeUsually computer, wifi and 4 G are optional
    ControllerNovastar TB6 / Novastar VX4U

    HS code: 8528591090


    Product viewing in detail


    P10 DIP 160X160MM LED MODULE

    Outdoor waterproof 960X960mm LED cabinet:

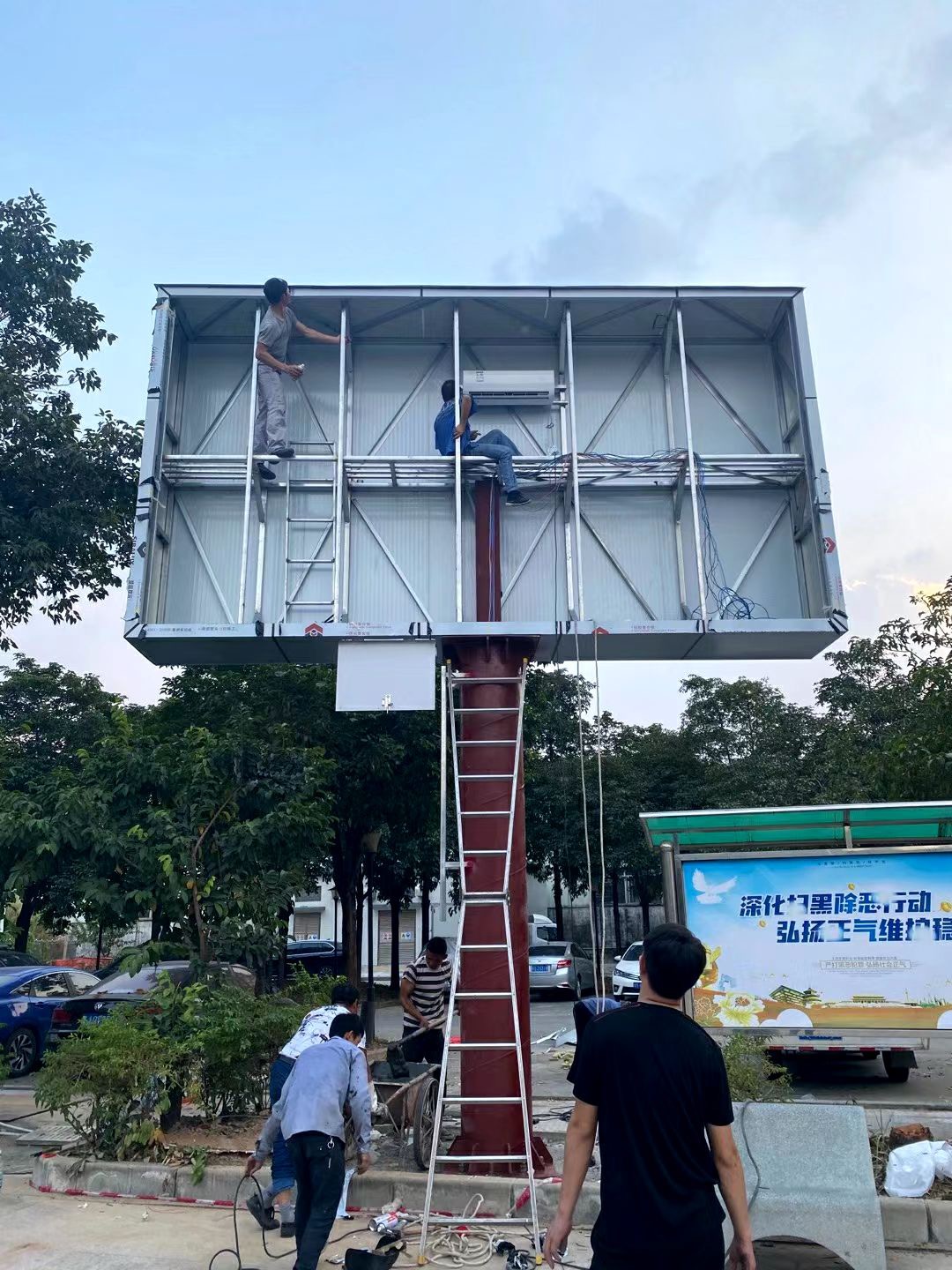

    Steel structure viewing:


    Regular plywood caese package:



    Common outdoor product project case:



    Computer control mode connection diagram:

    High brightness LED display module P5 outdoor advertising LED digital billboard screen

    Remote control mode(supports computer,smartphone/iPad/USB to update content.)

    High brightness LED display module P5 outdoor advertising LED digital billboard screen
