    4*3m P3 1200cd/m2 SMD2121 Stadium LED Screen IP45

    Ask Lasest Price
    Brand Name : XGCLED
    Model Number : P3
    Certification : CE,FCC,ROSH,CCC
    Price : USD$550~700 /square meter
    Payment Terms : T/T, Western Union
    Delivery Time : 5-15days
    • Product Details
    • Company Profile

    4*3m P3 1200cd/m2 SMD2121 Stadium LED Screen IP45

    4*3m Hotel LED Video Wall P3 Indoor Stadium LED Screen


    P3 Indoor LED panel Screen advantage:


    1) High refresh rate , high contrast which make the screen without any delay .


    2) Energy saving:low electric current,save 30% electricty.


    3) Using black LED lamp,High contrast, pure color.


    4) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal.


    5) Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .


    6) Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.


    7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.


    8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it’s easy to operate the system


    Module Specification
    1Pixel Pitch3mm
    2Led TypeSMD2121
    3Module Size192mmX192mm
    4Module Resolution64x64 pixels
    5Driving ICMBI5124
    6LED lampKinglight
    Cabinet Specification
    1Cabinet Size576mmX576mm
    2Cabinet Resolution192x192 pixels
    3Module Qty.3x3pcs
    4Cabinet MaterialsIron Cabinet
    5Cabinet Weight< 18Kg
    Screen Parameters
    1Screen SizeCostom Size
    4Brightness1200 cd/m2
    5Scanning Mode1/32scan
    6Viewing AngleH:140°;V:140°
    7Viewing Distance>3m
    8Gray Level16 Bit
    9Refresh Frequency3840 Hz
    10Power InputAC 100-240V
    11Power ComsuptionMax: 800W/ Average: 250W/
    12MTBF--hours>10,000 hours
    13Life--hours≥100,000 hours
    14IP GradeIP45
    15Operating Temperature-30~ 60
    16Storage Humidity10~70RH
    17Control SyetemNovastar
    18Operating SystemWindows98/2000/NT/XP
    19Power SupplyG-ENERGY
    20Maintance AccessBack service

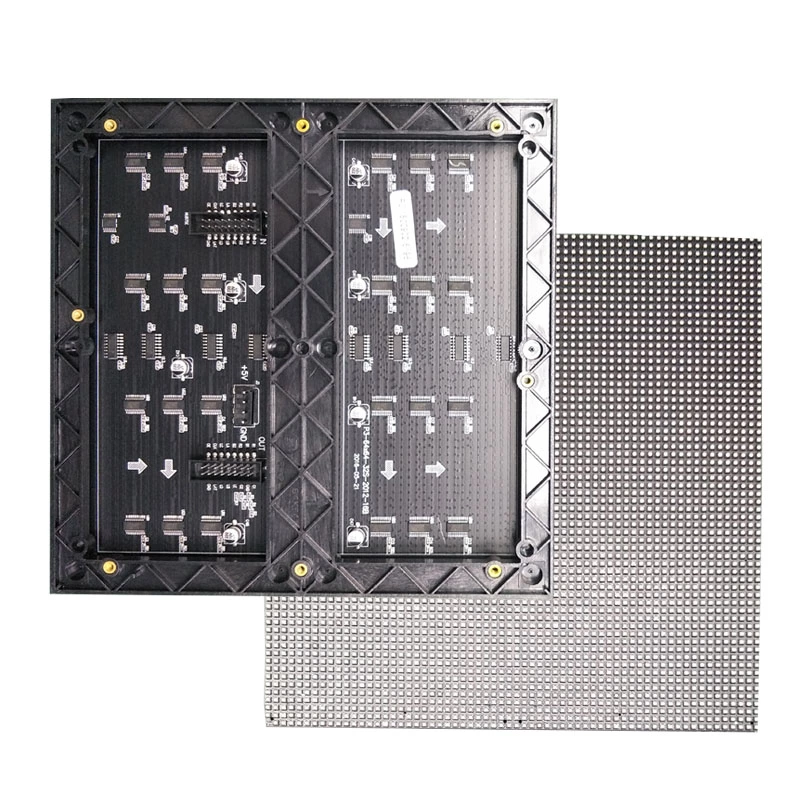

    P3 indoor 192X192mm LED module.

    P3 Indoor 576X576mm/ 768X768mm / 960X960mm simple iron LED panels


    P3 Indoor 576X576mm/ 768X768mm / 960X960mm iron LED panel with back doors.


    LED display connection diagram :
